IP-U Series
Manufacturer: PEI-Genesis
Beta
⌘K
CONN BACKSH ADP SZ13 OLIV PG13.5
| Part | Thread Size | Material | For Use With/Related Products | Color | Shell Size - Insert [custom] | Plating | Shielding | Includes | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type | Cable Exit | Cable Opening | Cable Opening | Shell Size - Insert | Diameter - Outside | Diameter - Outside | Shell Size - Insert [custom] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PEI-Genesis | PG13.5 | Aluminum | MIL-DTL-38999 Series III | Olive Drab | 13 | Cadmium over Electroless Nickel | Unshielded | 1 Backshell 1 O-Ring | 25.15 mm | 0.99 " | Adapter Backshell | 180 ° | 0.614 in | 15.6 mm | |||||
 PEI-Genesis | Aluminum | MIL-DTL-5015 Series | Olive Drab | Cadmium over Electroless Nickel | Unshielded | 1 Backshell 1 O-Ring | Backshell Banding | 180 ° | 0.813 in | 20.65 mm | 22 | ||||||||

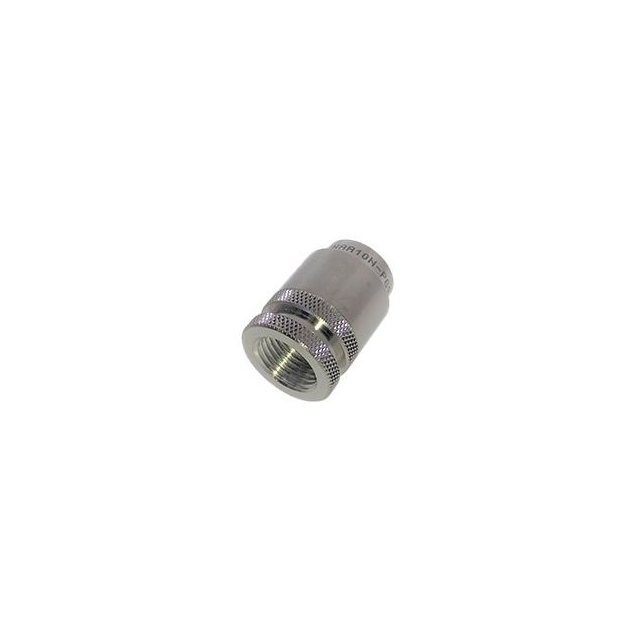

 PEI-Genesis | PG9 | Aluminum | MIL-DTL-26482 Series I | Silver | Electroless Nickel | Unshielded | 1 Backshell 1 O-Ring | Adapter Backshell | 180 ° | 0.488 in | 12.4 mm | 10 11 | 21.97 mm | 0.865 in | |||||
PEI-Genesis | PG16 | Aluminum | Olive Drab | Cadmium over Electroless Nickel | Unshielded | 29.11 mm | 1.146 in | Adapter Backshell | 180 ° | 16 17 | |||||||||
PEI-Genesis | PG16 | Aluminum | MIL-DTL-38999 Series III | Silver | Electroless Nickel | Unshielded | 1 Backshell 1 O-Ring | 29.11 mm | 1.146 in | Adapter Backshell | 180 ° | 0.709 " | 18 mm | 15 | |||||
PEI-Genesis | PG13.5 | Aluminum | MIL-DTL-26482 Series II MIL-DTL-5015 Series | Silver | Electroless Nickel | Unshielded | 1 Backshell 1 O-Ring | 25.15 mm | 0.99 " | Adapter Backshell | 180 ° | 0.618 in | 15.7 mm | 12 14 14S | |||||
 PEI-Genesis | Aluminum | MIL-DTL-38999 Series III | Silver | Electroless Nickel | Unshielded | 1 Backshell 1 O-Ring | Backshell Banding | 180 ° | 0.687 in | 17.46 mm | 17 | E | |||||||
PEI-Genesis | PG21 | Aluminum | Olive Drab | Cadmium over Electroless Nickel | Unshielded | 36.27 mm | 1.428 in | Adapter Backshell | 180 ° | 1.059 in | 26.9 mm | 22 | |||||||
 PEI-Genesis | Aluminum | Olive Drab | Cadmium over Electroless Nickel | Unshielded | Backshell Banding | 180 ° | 0.937 in | 23.8 mm | 24 | ||||||||||
PEI-Genesis | PG36 | Aluminum | Olive Drab | 36 | Cadmium over Electroless Nickel | Unshielded | 58.19 mm | 2.291 in | Adapter Backshell | 180 ° | 1.882 in | 47.8 mm |
