172106 Series

Catalog

V-TYPE E.I.S CONN. 6P ASSY

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Contact Finish - Post	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Termination	Insulation Material	Current Rating (Amps)	Shrouding	Number of Rows	Contact Type	Contact Material	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Number of Positions	Voltage Rating
TE Connectivity AMP Connectors 172106-6	General Purpose	0.8 µm	31.5 µin	Header	Detent Lock	Tin	0.409 in	10.4 mm	Through Hole	Square	7.49 mm	0.295 in	0.142 in	3.6 mm	Solder	Nylon 6/6 Polyamide (PA66)	2 A	Shrouded - 1 Wall	1	Male Pin	Brass	Board to Cable/Wire	31.5 µin	0.8 µm	14 mm	0.551 in	UL94 V-0	0.197 "	5 mm	Natural	All	6	250 VAC 350 VDC

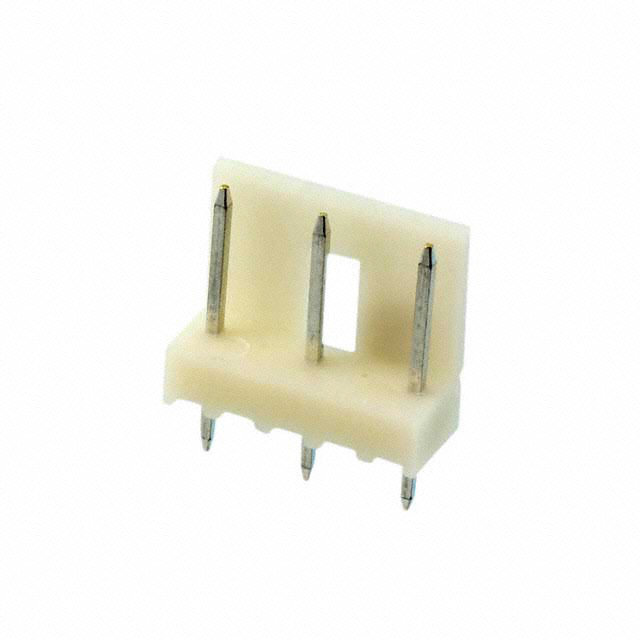

TE Connectivity AMP Connectors 172106-3	General Purpose	0.8 µm	31.5 µin	Header	Detent Lock	Tin	0.409 in	10.4 mm	Through Hole	Square	7.49 mm	0.295 in	0.142 in	3.6 mm	Solder	Nylon 6/6 Polyamide (PA66)	2 A	Shrouded - 1 Wall	1	Male Pin	Brass	Board to Cable/Wire	31.5 µin	0.8 µm	14 mm	0.551 in	UL94 V-0	0.197 "	5 mm	Natural	All		250 VAC 350 VDC
