LLBH Series

Catalog

POWER INDUCTORS - SMD INDUCTOR,MCOIL HIGH CURRENT,0.24UH30% ,T&R

Part	DC Resistance (DCR) [Max]	Inductance	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Current - Saturation (Isat)	Mounting Type	Tolerance	Type	Material - Core	Supplier Device Package	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	DC Resistance (DCR)

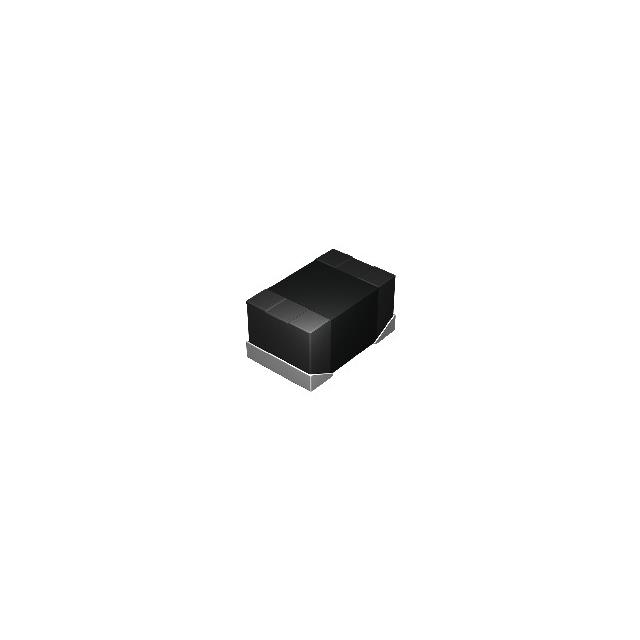

Taiyo Yuden LLBHB2520MKTR24N	26 mOhm	240 nH	1 MHz	1.2 mm	0.047 "	-40 C	105 ░C	2520 Metric	1008	4.75 A	Surface Mount	30 %	Wirewound	Metal	1008	3.5 A	2.5 mm	0.079 in	0.098 in	2 mm	Unshielded
Taiyo Yuden LLBHB1608KKT2R2M		2.2 µH	1 MHz			-40 C	105 ░C	1608 Metric	0603	520 mA	Surface Mount	20 %	Wirewound	Metal		750 mA	1.6 mm	0.031 in	0.063 "		Unshielded	0.039 in	1 mm	0.8 mm	345 mOhm
Taiyo Yuden LLBHB2520MKT2R2M	159 mOhm	2.2 µH	1 MHz	1.2 mm	0.047 "	-40 C	105 ░C	2520 Metric	1008	1.8 A	Surface Mount	20 %	Wirewound	Metal	1008	1.25 A	2.5 mm	0.079 in	0.098 in	2 mm	Unshielded
