AXE270 Series

Catalog

CONN HDR 70POS SMD GOLD

Part	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Connector Type	Mated Stacking Heights	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mounting Type	Features
Panasonic Electronic Components AXE270124D	2	0.4 mm	0.016 in	70	Header Outer Shroud Contacts	0.8 mm	Gold	0.65 mm	0.026 "	Surface Mount	Solder Retention
Panasonic Electronic Components AXE270124	2	0.4 mm	0.016 in	70	Header Outer Shroud Contacts	0.8 mm	Gold	0.65 mm	0.026 "	Surface Mount	Solder Retention

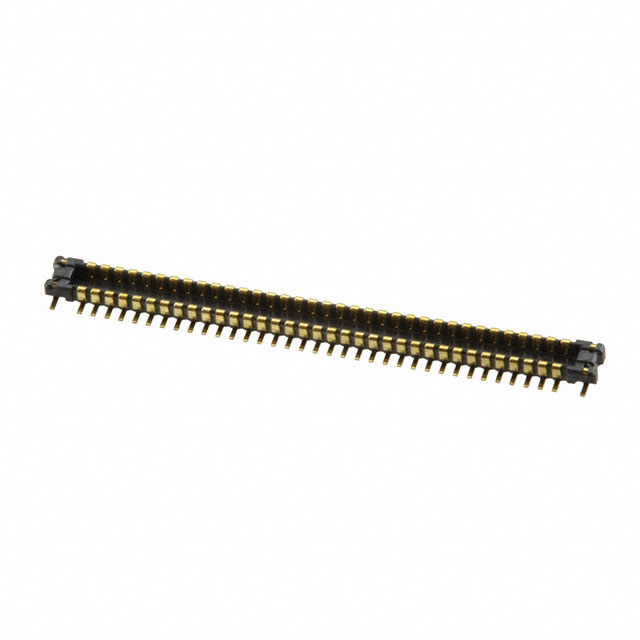

Panasonic Electronic Components AXE270124A	2	0.4 mm	0.016 in	70	Header Outer Shroud Contacts	0.8 mm	Gold	0.65 mm	0.026 "	Surface Mount	Solder Retention
