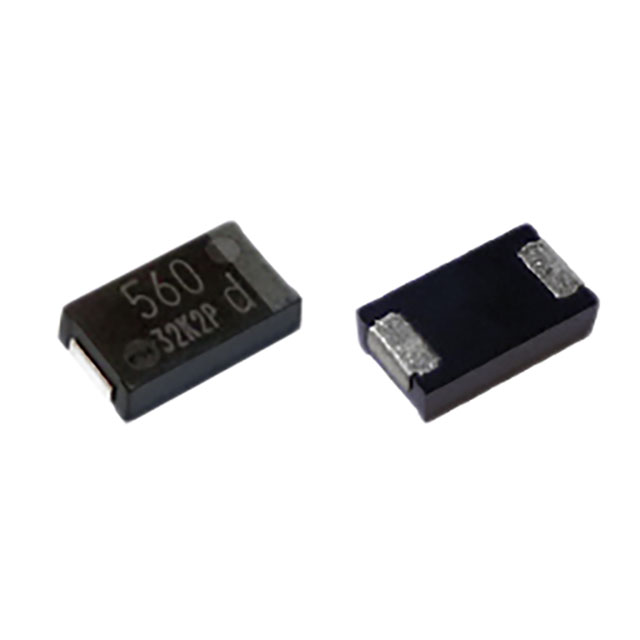

EEF-HX Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY 47UF 20% 16V SMD

Part	Lifetime @ Temp.	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Mounting Type	Type	ESR (Equivalent Series Resistance)	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Panasonic Industrial Automation Sales EEF-HX1C470R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	47 µF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	16 V	3.2 A	-55 °C	125 °C	General Purpose
Panasonic Industrial Automation Sales EEF-HX1D330R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	33 ÁF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	20 V	3.2 A	-55 °C	125 °C	General Purpose
Panasonic Industrial Automation Sales EEF-HX0D471R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	470 µF	Surface Mount	Polymer	15 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	5.1 A	-55 °C	125 °C	General Purpose	0.287 "	4.3 mm	0.169 "	7.3 mm
Panasonic Industrial Automation Sales EEF-HX1C150R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	15 µF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	16 V	3.2 A	-55 °C	125 °C	General Purpose
Panasonic Industrial Automation Sales EEF-HX0D471R4	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	470 µF	Surface Mount	Polymer	4.5 mOhms	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	8.5 A	-55 °C	125 °C	General Purpose	0.287 "	4.3 mm	0.169 "	7.3 mm
Panasonic Industrial Automation Sales EEF-HX0D471R9	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	470 µF	Surface Mount	Polymer	9 mOhms	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	6.3 A	-55 °C	125 °C	General Purpose	0.287 "	4.3 mm	0.169 "	7.3 mm
Panasonic Industrial Automation Sales EEF-HX1A680R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	68 µF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	10 V	3.2 A	-55 °C	125 °C	General Purpose
Panasonic Industrial Automation Sales EEF-HX1D220R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	22 µF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	20 V	3.2 A	-55 °C	125 °C	General Purpose
Panasonic Industrial Automation Sales EEF-HX1C220R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	22 µF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	16 V	3.2 A	-55 °C	125 °C	General Purpose
Panasonic Industrial Automation Sales EEF-HX1D470R	1000 Hrs	7343 Metric	2917	2 mm	0.079 in	47 µF	Surface Mount	Polymer	40 mOhm	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	20 V	3.2 A	-55 °C	125 °C	General Purpose
