27MP Series

Catalog

PCB SUPPORT POST, .156/.156 HOLE

Part	Material	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Mounting Panel Thickness [x]	Mounting Panel Thickness [x]	Between Board Height	Between Board Height	Holding Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Length - Overall	Length - Overall

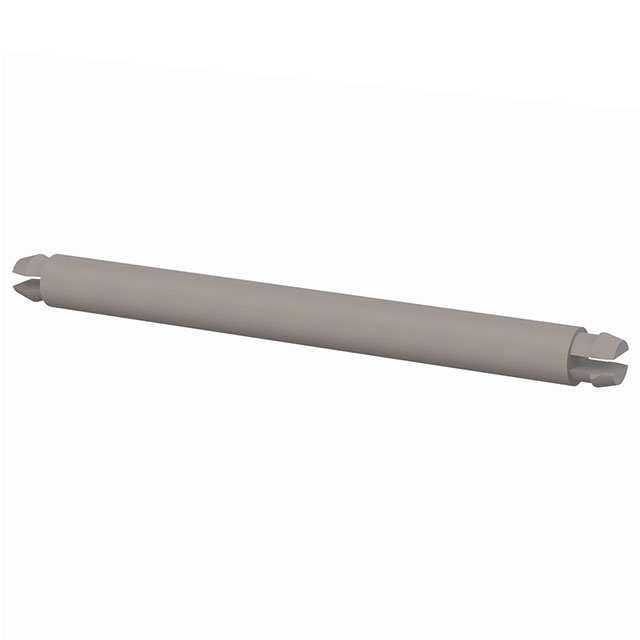

Essentra Components 27MP01950	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	56.64 mm	2.23 in	1.59 mm	0.063 "	49.53 mm	1.95 in	Snap Lock	0.156 in	3.96 mm

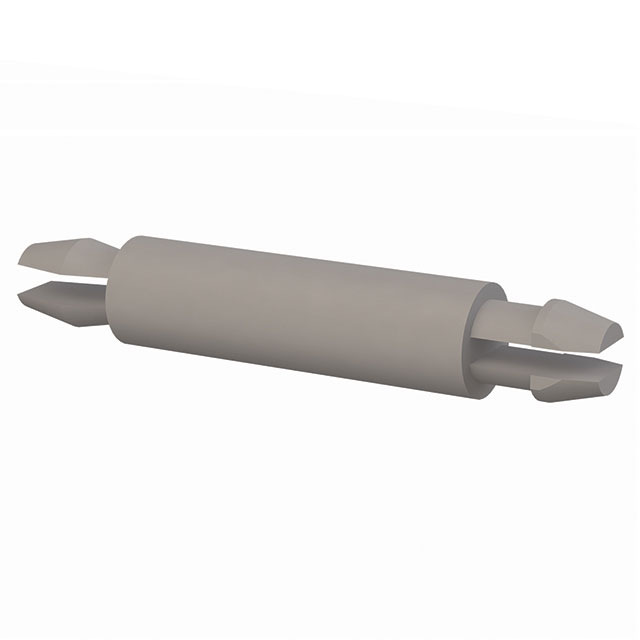

Essentra Components 27MP00437S	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	18.21 mm	0.717 "	1.59 mm	0.063 "	11.1 mm	0.437 in	Snap Lock	0.156 in	3.96 mm
Essentra Components 27MP00500	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	19.81 mm	0.78 in	1.59 mm	0.063 "	12.7 mm	0.5 in	Snap Lock	0.156 in	3.96 mm

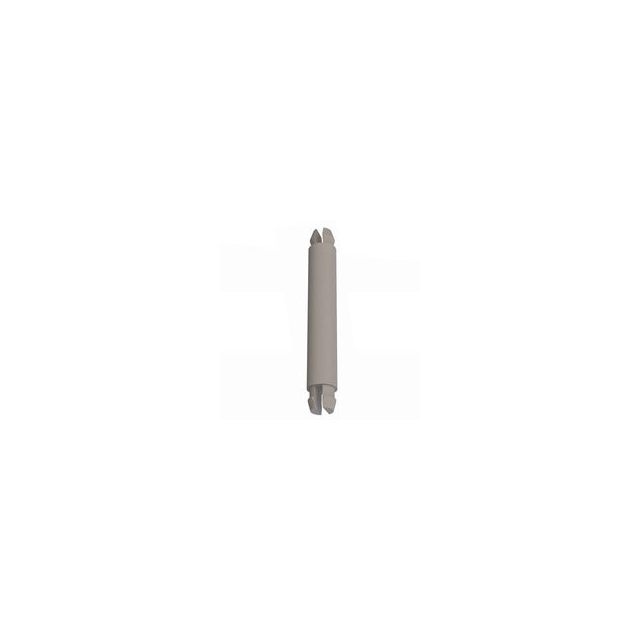

Essentra Components 27MP01000	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	32.51 mm	1.28 in	1.59 mm	0.063 "	25.4 mm	1 in	Snap Lock	0.156 in	3.96 mm

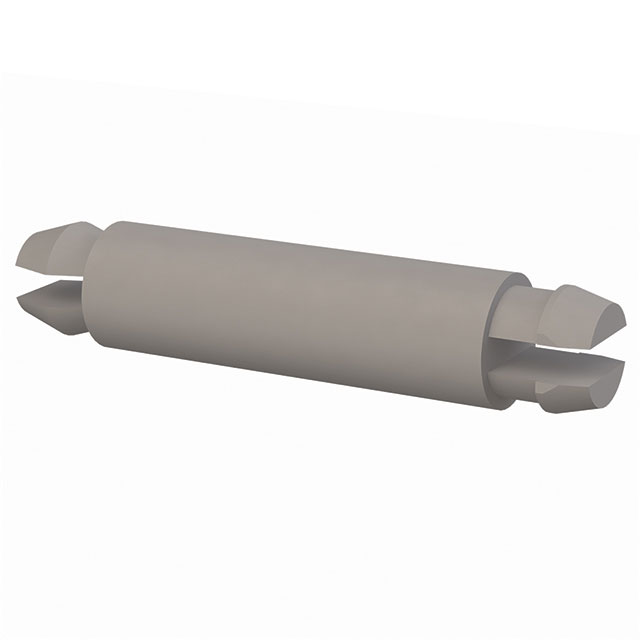

Essentra Components 27MP00625	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	22.99 mm	0.905 in	1.59 mm	0.063 "	15.88 mm	0.625 in	Snap Lock	0.156 in	3.96 mm	5 8

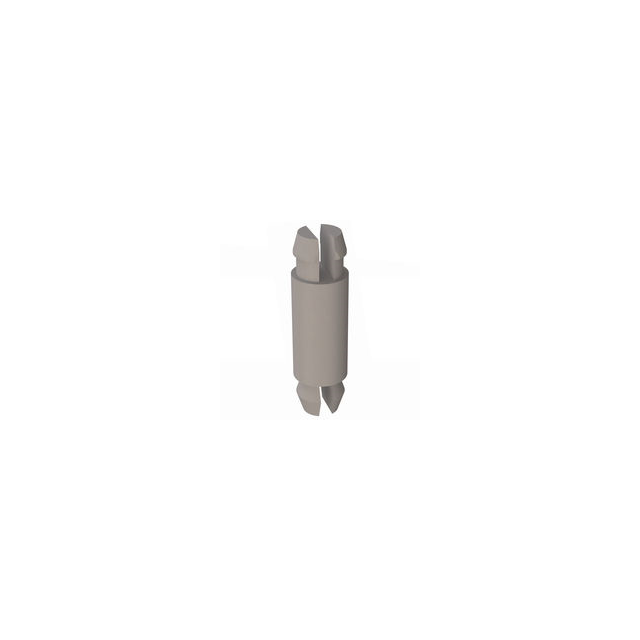

Essentra Components 27MP00375	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	16.64 mm	0.655 in	1.59 mm	0.063 "	9.53 mm	0.375 in	Snap Lock	0.156 in	3.96 mm	0.375 "
Essentra Components 27MP00197	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	12.12 mm	0.477 in	1.59 mm	0.063 "	0.197 in		Snap Lock	0.156 in	3.96 mm	5 mm
Essentra Components 27MP00437	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	18.21 mm	0.717 "	1.59 mm	0.063 "	11.1 mm	0.437 in	Snap Lock	0.156 in	3.96 mm

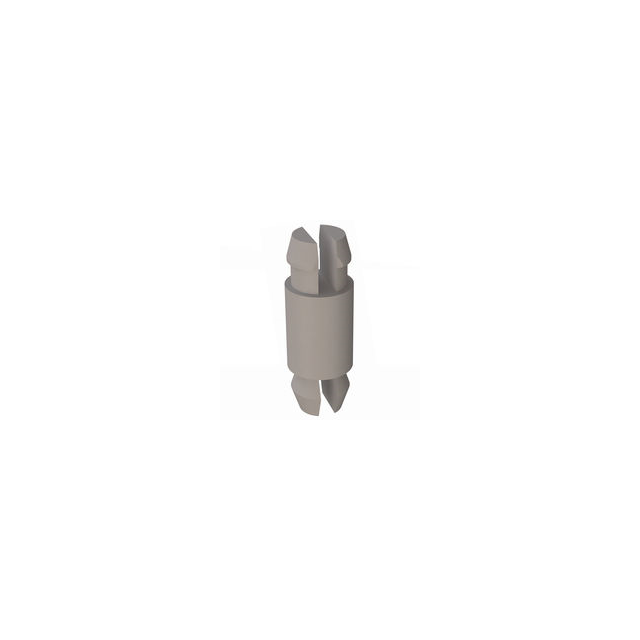

Essentra Components 27MP00250	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock			1.59 mm	0.063 "	0.25 in	6.35 mm	Snap Lock	0.156 in	3.96 mm		13.46 mm	0.53 in

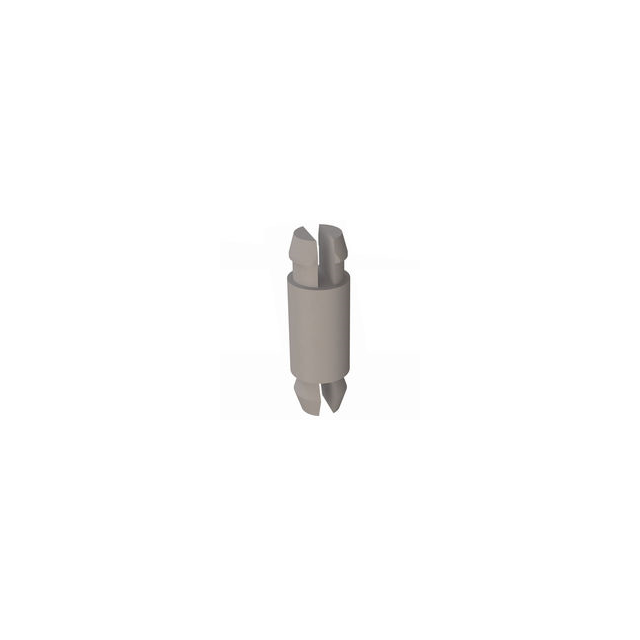

Essentra Components 27MP00312	Nylon	3.96 mm	0.15625 in	0.156 in	0.063 in	1.59 mm	Snap Lock	15.04 mm	0.592 "	1.59 mm	0.063 "	7.93 mm	0.312 in	Snap Lock	0.156 in	3.96 mm
