302-S16 Series

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Color	Number of Positions Loaded	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows [custom]	Voltage Rating	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Features	Insulation Material	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Contact Material	Termination

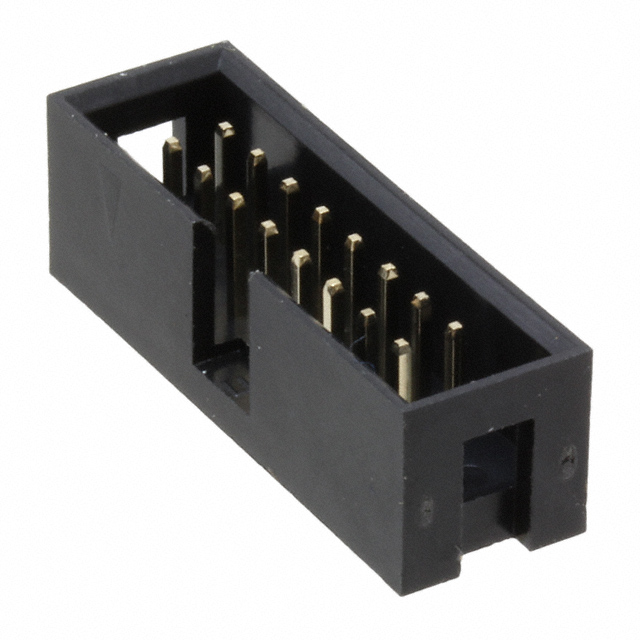

On Shore Technology Inc. 302-S161	1.25 µin	0.032 µm	Shrouded - 4 Wall	Male Pin	3 A	0.1 in	2.54 mm	Header	Black	All	Square	0.122 in	3.1 mm	2	250 V	Through Hole	UL94 V-0	Flash	-40 C	105 ░C	0.358 "	9.1 mm	Keying Slot	Polyester Glass Filled	Board to Cable/Wire	0.1 "	2.54 mm	Push-Pull	Gold	16	Gold	Brass	Solder
