9RF1312 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

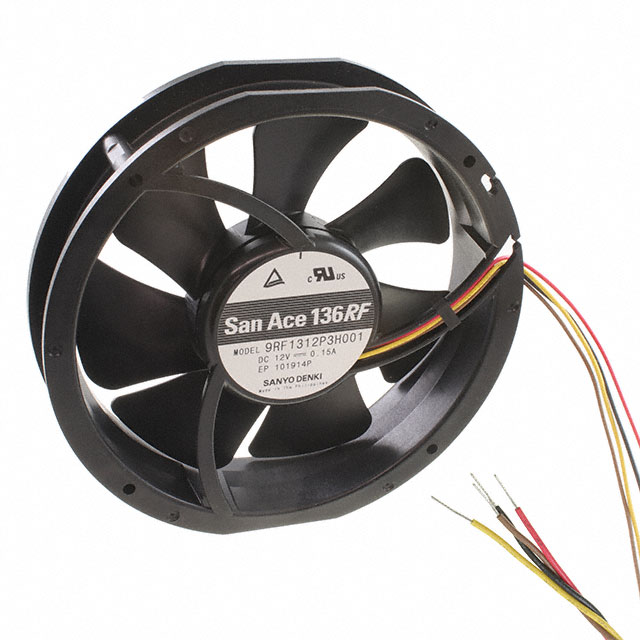

AXIAL FAN, 136MM, 12VDC, 70.7CFM, 35DBA
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Features | Lifetime @ Temp. | Material - Frame | Material - Blade | Fan Type | RPM | Size / Dimension [diameter] | Size / Dimension | Approval Agency | Voltage - Rated | Static Pressure | Static Pressure | Noise | Termination | Air Flow | Air Flow | Width [x] | Power (Watts) | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 10.2 VDC | 13.8 VDC | 150 mA | Locked Rotor Protection PWM Control Reversible Flow Speed Sensor (Tach) | Varies Based on Temperature | Plastic | Plastic | Tubeaxial | 3100 RPM | 136 mm | Round | CSA TUV UL | 12 VDC | 0.41 in H2O | 102.1 Pa | 35 dB | 4 Wire Leads | 70.7 CFM | 1.98 mł/min | 28 mm | 1.8 W | Ball | -20 ░C | 70 °C | 220 g | 0.485 lb |
