4609H Series
Manufacturer: Bourns Inc.
Beta
⌘K

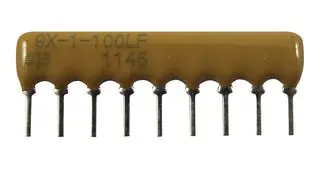

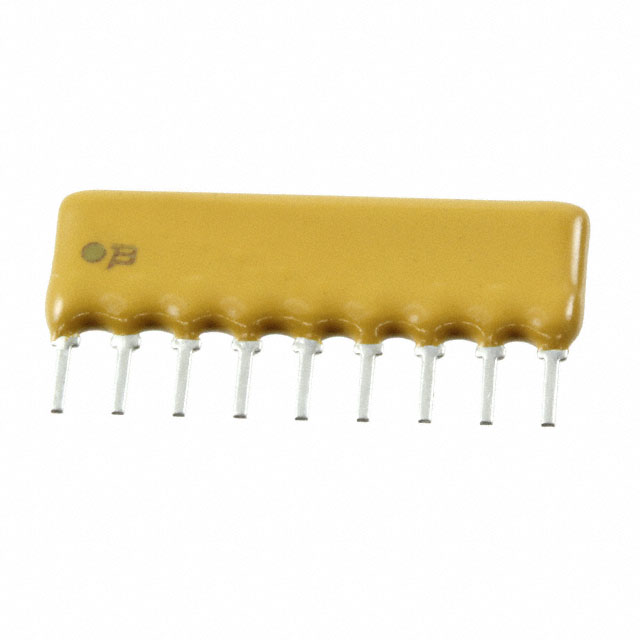

RES ARRAY 8 RES 470 OHM 9SIP
| Part | Package / Case | Temperature Coefficient | Power Per Element | Mounting Type | Resistor-Ratio-Drift | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Number of Resistors | Circuit Type | Tolerance | Number of Pins | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Resistance (Ohms) | Voltage - Rated | Number of Channels | Values | Height | Height | Resistance - Channel (Ohms) | Type | ESD Protection | Applications | Filter Order | Technology | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 470 Ohms | |||||||||||||
 Bourns Inc. | 9-SIP | Through Hole | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | -30 ░C | 85 °C | 50 VDC | 8 | 47 pF 100 Ohms | 0.335 in | 8.5 mm | 100 Ohms | Low Pass | General Purpose | 1st | RC | ||||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 220 Ohms | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 820 Ohms | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 4.7 kOhms | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 1k | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 15k | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 2.2 kOhms | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 22k | |||||||||||||
Bourns Inc. | 9-SIP | 100 ppm/°C | 300 mW | Through Hole | 50 ppm/°C | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 8 | Bussed | 2 % | 9 | 9-SIP | -55 C | 125 °C | 5.08 mm | 0.2 in | 270 kOhms |
