ISO7721-Q1 Series

Automotive, robust EMC, dual-channel, 1/1, reinforced digital isolator

Catalog

Automotive, robust EMC, dual-channel, 1/1, reinforced digital isolator

Part	Supplier Device Package	Mounting Type	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Qualification	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [x]	Package / Case	Package / Case [y]	Pulse Width Distortion (Max) [Max]	Channel Type	Common Mode Transient Immunity (Min) [Min]	Data Rate	Technology	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Type	Inputs - Side 1/Side 2	Utilized IC / Part	Supplied Contents	Primary Attributes	Function	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [custom]	Package / Case [custom]	Voltage - Isolation
Texas Instruments ISO7721QDWQ1	16-SOIC	Surface Mount	Automotive	125 °C	-40 °C	2	16 ns	16 ns	AEC-Q100	5.5 V	2.25 V	0.295 in	16-SOIC	7.5 mm	4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1

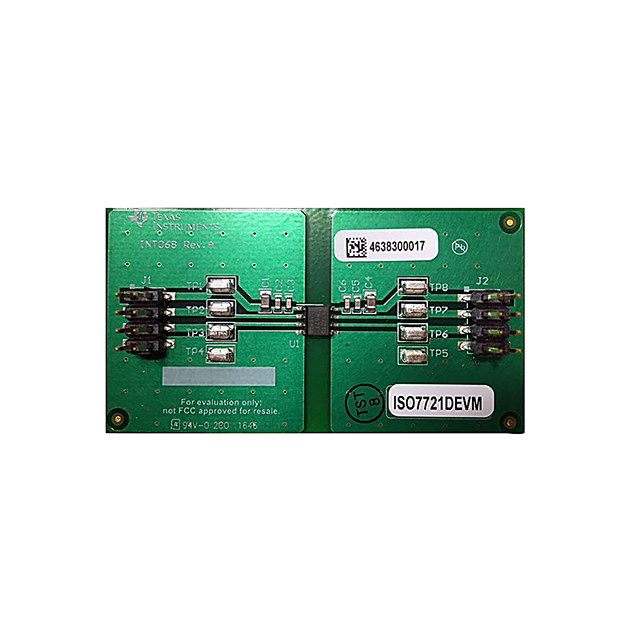

Texas Instruments ISO7721DEVM																						Interface		ISO7721D	Board(s)	2-Channel (Dual)	Digital Isolator
Texas Instruments ISO7721QDWRQ1	16-SOIC	Surface Mount	Automotive	125 °C	-40 °C	2	16 ns	16 ns	AEC-Q100	5.5 V	2.25 V	0.295 in	16-SOIC	7.5 mm	4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling			General Purpose	1/1					3.9 ns	3.9 ns
Texas Instruments ISO7721DWV	8-SOIC	Surface Mount		125 °C	-55 °C	2	16 ns	16 ns		5.5 V	2.25 V		8-SOIC		4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1							0.295 in	7.5 mm
Texas Instruments ISO7721DW	16-SOIC	Surface Mount		125 °C	-55 °C	2	16 ns	16 ns		5.5 V	2.25 V	0.295 in	16-SOIC	7.5 mm	4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1

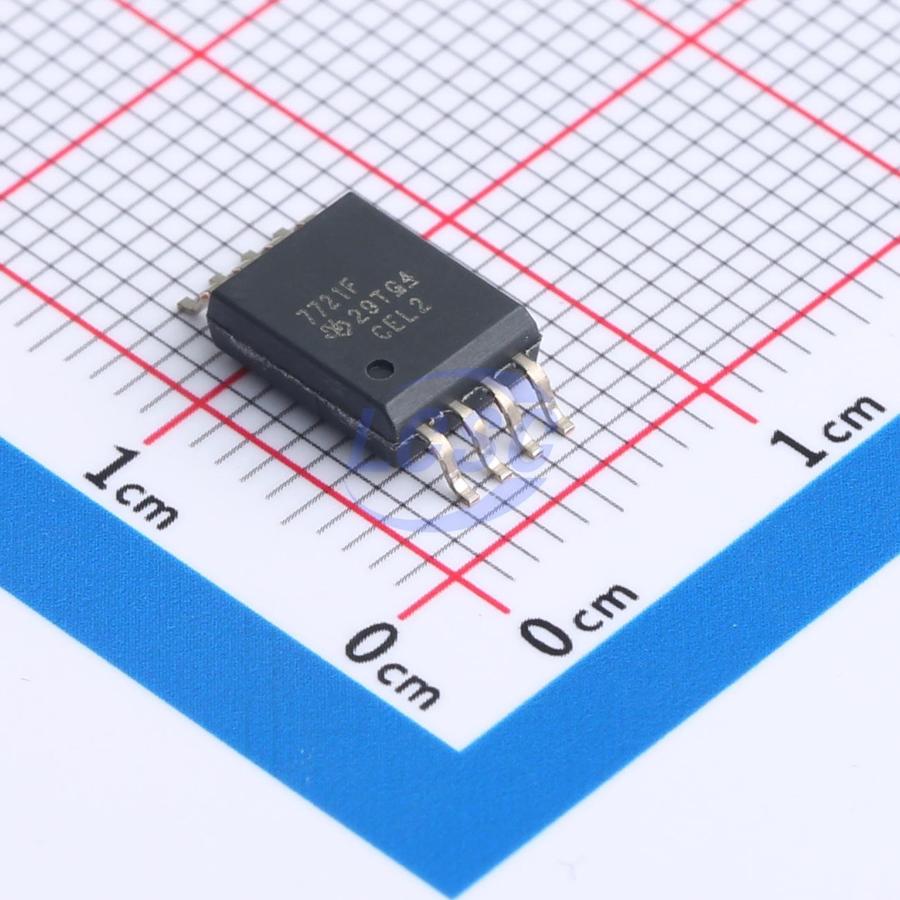

Texas Instruments ISO7721FDWV	8-SOIC	Surface Mount		125 °C	-55 °C	2	16 ns	16 ns		5.5 V	2.25 V		8-SOIC		4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1							0.295 in	7.5 mm
Texas Instruments ISO7721FQDWQ1	16-SOIC	Surface Mount	Automotive	125 °C	-40 °C	2	16 ns	16 ns	AEC-Q100	5.5 V	2.25 V	0.295 in	16-SOIC	7.5 mm	4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1
Texas Instruments ISO7721FQDRQ1	8-SOIC	Surface Mount	Automotive	125 °C	-40 °C	2	16 ns	16 ns	AEC-Q100	5.5 V	2.25 V	0.154 in	8-SOIC	3.9 mm	4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1									3000 VAC
Texas Instruments ISO7721DWR	16-SOIC	Surface Mount		125 °C	-55 °C	2	16 ns	16 ns		5.5 V	2.25 V	0.295 in	16-SOIC	7.5 mm	4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1
Texas Instruments ISO7721FDWVR	8-SOIC	Surface Mount		125 °C	-55 °C	2	16 ns	16 ns		5.5 V	2.25 V		8-SOIC		4.9 ns	Unidirectional	85 kV/Ás	100 Mbps	Capacitive Coupling	1.9 ns	1.8 ns	General Purpose	1/1							0.295 in	7.5 mm

Catalog

Automotive, robust EMC, dual-channel, 1/1, reinforced digital isolator

Key Features

• Qualified for automotive applicationsAEC-Q100 qualified With the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD classification level 3ADevice CDM ESD classification level C6Functional Safety-CapableDocumentation available to aid functional safety system design:ISO7720-Q1,ISO7721-Q1100 Mbps data rateRobust isolation barrier:>30-Year projected lifetime at 1.5 kV RMS working voltageUp to 5000 V RMS Isolation RatingUp to 12.8 kV surge capability±100 kV/µs Typical CMTIWide supply range: 2.25 V to 5.5 V2.25-V to 5.5-V level translationDefault output High (ISO772x) and Low (ISO772xF) OptionsLow power consumption, typical 1.7 mA per channel at 1 MbpsLow propagation delay: 11 ns typicalRobust electromagnetic compatibility (EMC)System-Level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierLow emissionsWide-SOIC (DW-16 , DWV-8) and Narrow-SOIC (D-8) package optionsSafety-related CertificationsVDE reinforced insulation per DIN EN IEC 60747-17 (VDE 0884-17)UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1 certificationsQualified for automotive applicationsAEC-Q100 qualified With the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD classification level 3ADevice CDM ESD classification level C6Functional Safety-CapableDocumentation available to aid functional safety system design:ISO7720-Q1,ISO7721-Q1100 Mbps data rateRobust isolation barrier:>30-Year projected lifetime at 1.5 kV RMS working voltageUp to 5000 V RMS Isolation RatingUp to 12.8 kV surge capability±100 kV/µs Typical CMTIWide supply range: 2.25 V to 5.5 V2.25-V to 5.5-V level translationDefault output High (ISO772x) and Low (ISO772xF) OptionsLow power consumption, typical 1.7 mA per channel at 1 MbpsLow propagation delay: 11 ns typicalRobust electromagnetic compatibility (EMC)System-Level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierLow emissionsWide-SOIC (DW-16 , DWV-8) and Narrow-SOIC (D-8) package optionsSafety-related CertificationsVDE reinforced insulation per DIN EN IEC 60747-17 (VDE 0884-17)UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1 certifications

Description

The ISO772x devices are high-performance, dual-channel digital isolators with 5000 VRMS (DW and DWV packages) and 3000 VRMS (D package) isolation ratings per UL 1577. This family includes devices with reinforced insulation ratings according to VDE, CSA, TUV and CQC.The ISO7721B device is designed for applications that require basic insulation ratings only. The ISO772x devices provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. The ISO7720 device has both channels in the same direction while the ISO7721 device has both channels in the opposite direction. In the event of input power or signal loss, the default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details. Used in conjunction with isolated power supplies, these devices help prevent noise currents on data buses, such as RS-485, RS-232, and CAN , from damaging sensitive circuitry. Through innovative chip design and layout techniques, the electromagnetic compatibility of the ISO772x devices has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO772x family of devices is available in 16-pin SOIC wide-body (DW), 8-pin SOIC wide-body (DWV), and 8-pin SOIC narrow-body (D) packages. The ISO772x devices are high-performance, dual-channel digital isolators with 5000 VRMS (DW and DWV packages) and 3000 VRMS (D package) isolation ratings per UL 1577. This family includes devices with reinforced insulation ratings according to VDE, CSA, TUV and CQC.The ISO7721B device is designed for applications that require basic insulation ratings only. The ISO772x devices provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. The ISO7720 device has both channels in the same direction while the ISO7721 device has both channels in the opposite direction. In the event of input power or signal loss, the default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details. Used in conjunction with isolated power supplies, these devices help prevent noise currents on data buses, such as RS-485, RS-232, and CAN , from damaging sensitive circuitry. Through innovative chip design and layout techniques, the electromagnetic compatibility of the ISO772x devices has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO772x family of devices is available in 16-pin SOIC wide-body (DW), 8-pin SOIC wide-body (DWV), and 8-pin SOIC narrow-body (D) packages.
