71991 Series

Catalog

CONN RCPT 82POS .100 DL STR PCB

...

Part	Contact Finish - Post	Contact Shape	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Material	Contact Type	Termination	Connector Type	Number of Rows	Applications	Fastening Type	Mated Stacking Heights [z]	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 71991-441LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	78.7 µin	2 µm	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	82	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue
Amphenol ICC (FCI) 71991-817LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	15 µin	0.38 µm	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	34	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue	Gold

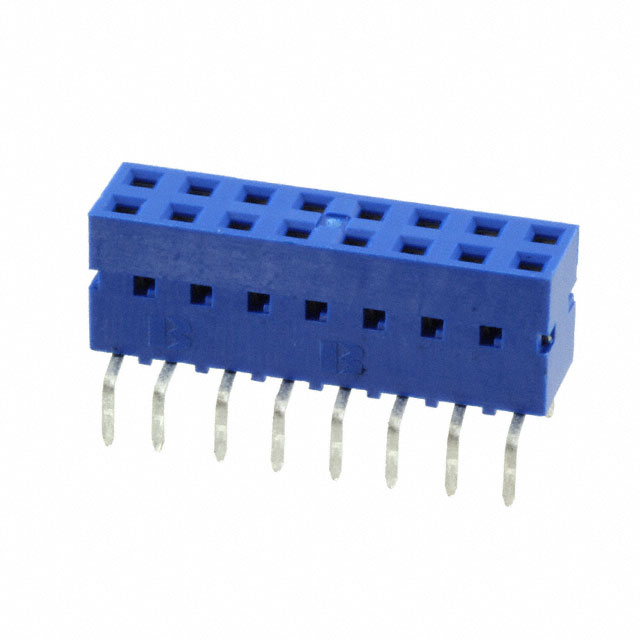

Amphenol ICC (FCI) 71991-808LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	15 µin	0.38 µm	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in		Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue	Gold	16
Amphenol ICC (FCI) 71991-824LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	15 µin	0.38 µm	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	48	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue	Gold
Amphenol ICC (FCI) 71991-323LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	30 Áin	0.76 Ám	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	46	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue	Gold

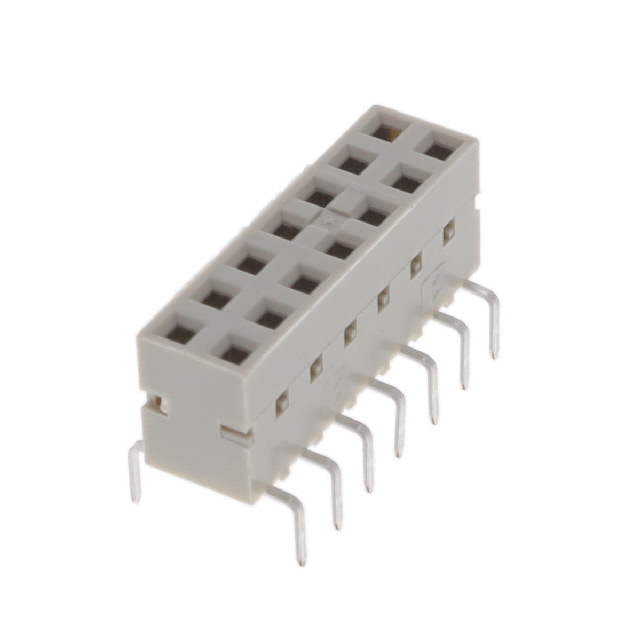

Amphenol ICC (FCI) 71991-307HLF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	30 Áin	0.76 Ám	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	14	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Gray	Gold
Amphenol ICC (FCI) 71991-412LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	78.7 µin	2 µm	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	24	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue

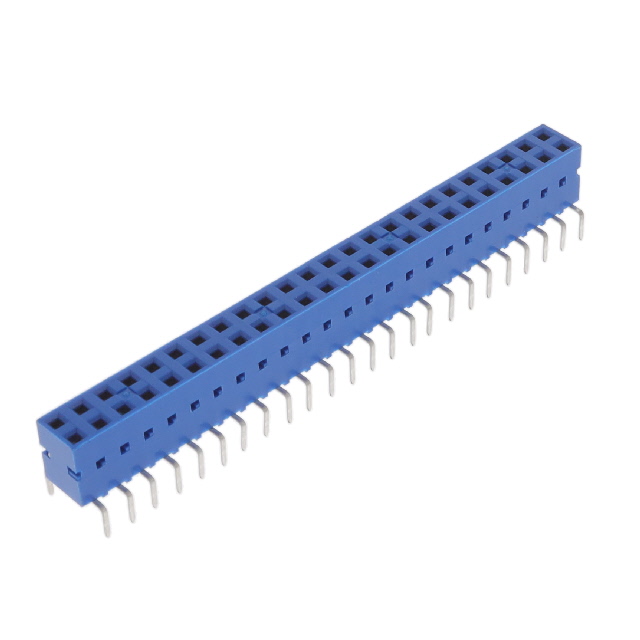

Amphenol ICC (FCI) 71991-324LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	30 Áin	0.76 Ám	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	48	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue	Gold
Amphenol ICC (FCI) 71991-332H	Tin	Square	Through Hole	2.54 mm	0.1 in	All	30 Áin	0.76 Ám	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	64	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Gray	Gold
Amphenol ICC (FCI) 71991-402LF	Tin	Square	Through Hole	2.54 mm	0.1 in	All	78.7 µin	2 µm	2 çm	78.7 çin	0.118 in	3 mm	0.1 in	2.54 mm	6.99 mm	0.275 in	4	Phosphor Bronze	Female Socket	Solder	Receptacle Bottom or Top Entry	2	Automotive General Purpose Industrial Telecommunications	Push-Pull	11.04 mm	UL94 V-0	Blue
