EMG1T2 Series

NPN+NPN, SOT-553, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Catalog

NPN+NPN, SOT-553, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Part	Resistor - Base (R1)	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Transistor Type	Resistor - Emitter Base (R2)	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Frequency - Transition

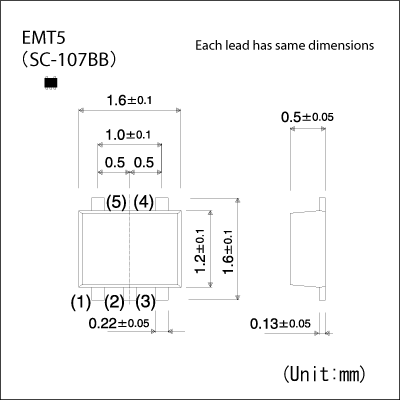

Rohm Semiconductor EMG1T2R	22 kOhms	EMT5	300 mV	50 V	100 mA	500 nA	Surface Mount	2 NPN - Pre-Biased (Dual)	22 kOhms	6-SMD (5 Leads) Flat Leads	56 hFE	250 MHz

Catalog

NPN+NPN, SOT-553, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Description

Devices integrating two transistors are available in ultra-compact packages, suitable for various applications such as pre-amplifier differential amplification circuits, high-frequency oscillators, driver ICs and so forth.
