TLS115 Series

Manufacturer: INFINEON

Catalog

DEMO BOARD, LOW DROPOUT LINEAR REGULATOR ROHS COMPLIANT: YES

Part	Board Type	Utilized IC / Part	Supplied Contents	Voltage - Output [Min]	Voltage - Output [Max]	Channels per IC	Current - Output	Regulator Type	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Output Configuration	PSRR	Number of Regulators	Voltage Dropout (Max) [Max]	Grade	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [y]	Package / Case [x]	Output Type	Control Features	Current - Quiescent (Iq)	Qualification	Voltage - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Protection Features	Supplier Device Package

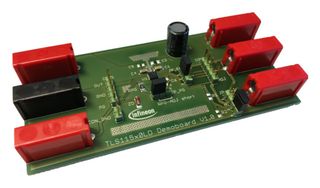

INFINEON TLS115D0LDDEMOBOARDTOBO1	Fully Populated	TLS115x0LD	Board(s)	2 V	14 V	1	150 mA	Positive Adjustable	4 V	45 V	Board(s)
INFINEON TLS115B0EJXUMA1							150 mA					14 mA	45 V	Positive	85 dB	1	0.5 V	Automotive	2 V	8-SOIC Exposed Pad	3.9 mm	0.154 in	Adjustable	Enable	90 çA	AEC-Q100	14 V	-40 °C	150 °C	Surface Mount	Over Temperature Reverse Polarity Short Circuit
INFINEON TLS115D0EJDEMOBOARDTOBO1	Fully Populated	TLS115D0EJ TLS115x0EJ	Board(s)	2 V	14 V	1	150 mA	Positive Adjustable	4 V	45 V	Board(s)
INFINEON TLS115B0LDXUMA1							150 mA					14 mA	45 V	Positive	85 dB	1	0.5 V	Automotive	2 V	10-TFDFN Exposed Pad			Adjustable	Enable	90 çA	AEC-Q100	14 V	-40 °C	150 °C	Surface Mount	Over Temperature Reverse Polarity Short Circuit	PG-TSON-10
