1618273 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

H-14=RELAY, VACUUM, DPDT

Part	Coil Resistance	Seal Rating	Mounting Type	Contact Form	Must Release Voltage	Coil Voltage	Must Operate Voltage	Contact Rating (Current)	Coil Type	Relay Type	Termination Style	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Release Time	Contact Material	Switching Voltage [Max]	Load - Max Switching
TE Connectivity AMP Connectors H-14	120 Ohms	Sealed - Vacuum	Panel Mount	DPDT (2 Form C)	1 VDC	26.5 VDC	16 VDC	30 A	Non Latching	General Purpose	Solder Turret	20 ms	-55 C	125 °C	220.8 mA	20 ms
TE Connectivity AMP Connectors H-16C	120 Ohms	Sealed - Vacuum	Panel Mount	DPDT (2 Form C)	1 VDC	26.5 VDC	16 VDC	30 A	Non Latching	General Purpose	Solder Turret	20 ms	-55 C	125 °C	220.8 mA	20 ms

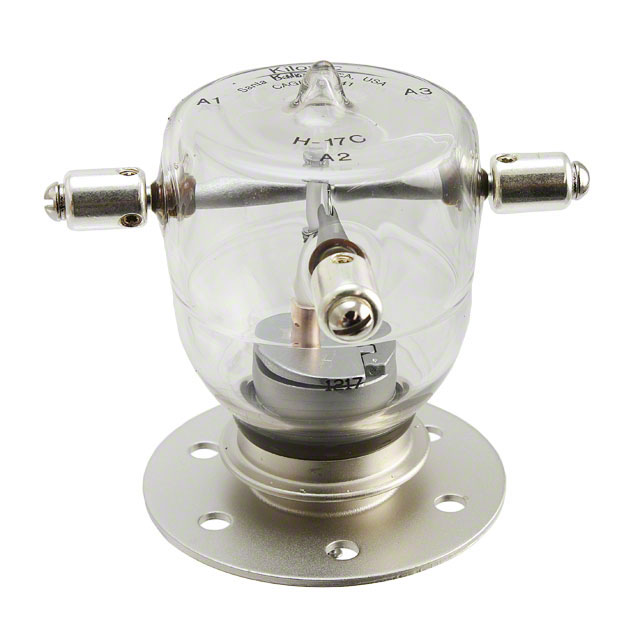

TE Connectivity AMP Connectors H-17C	120 Ohms	Sealed - Vacuum	Panel Mount	SPDT (1 Form C)	1 VDC	26.5 VDC	16 VDC	30 A	Non Latching	General Purpose	Solder Turret	25 ms	-55 C	125 °C	220 mA	25 ms	Tungsten (W)
TE Connectivity AMP Connectors 9-1618273-0		Sealed - Vacuum	Panel Mount	SPDT (1 Form C)	1 VDC	26.5 VDC	16 VDC		Non Latching	General Purpose	Solder Turret
TE Connectivity AMP Connectors H-14/12VDC	24 Ohms	Sealed - Vacuum	Panel Mount	DPDT (2 Form C)	0.5 VDC	12 VDC	8 VDC	30 A	Non Latching	General Purpose	Solder Turret	20 ms	-55 C	125 °C	500 mA	20 ms
TE Connectivity AMP Connectors 6-1618273-0			Panel Mount					30 A	Non Latching	General Purpose	Solder Turret	30 ms	-55 C	125 °C		20 ms		30000 VDC
TE Connectivity AMP Connectors 7-1618273-3	60 Ohms	Sealed - Hermetically	Panel Mount	SPDT (1 Form C)	0.5 VDC	12 VDC	8 VDC	30 A	Non Latching	General Purpose	Solder Turret Wire Leads	15 ms	-55 C	125 °C	200 mA	15 ms		15 VDC	450 W
