OSTTB04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 4POS TOP ENT 5.08MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Screw Material - Plating | Contact Material - Plating | Housing Material | Positions Per Level | Number of Levels | Color | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Features | Current | Pitch | Pitch | Mating Orientation | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

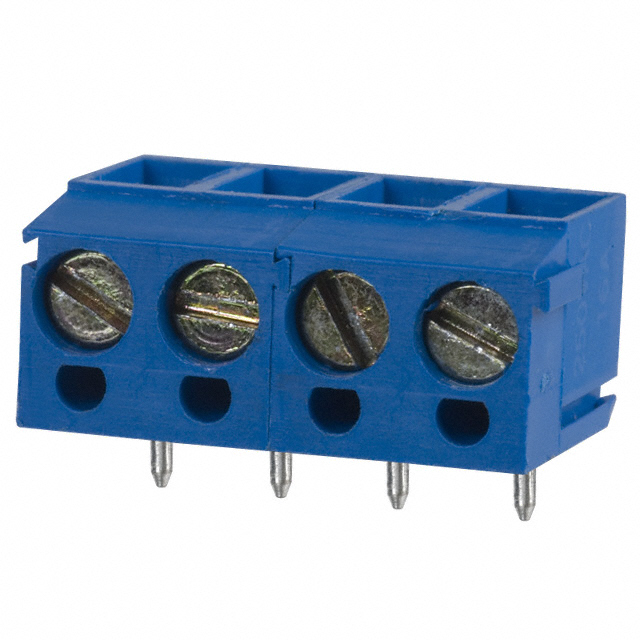

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 3.5 Lb-In | 0.4 Nm | Stainless Steel | Steel - Zinc Plated | Tin Plated | Thermoplastic | 4 | 1 | Blue | 14 AWG | 22 AWG | Through Hole | Interlocking (Side) | 15 A | 5.08 mm | 0.2 in | Vertical with Board | Screw - Leaf Spring Wire Guard |

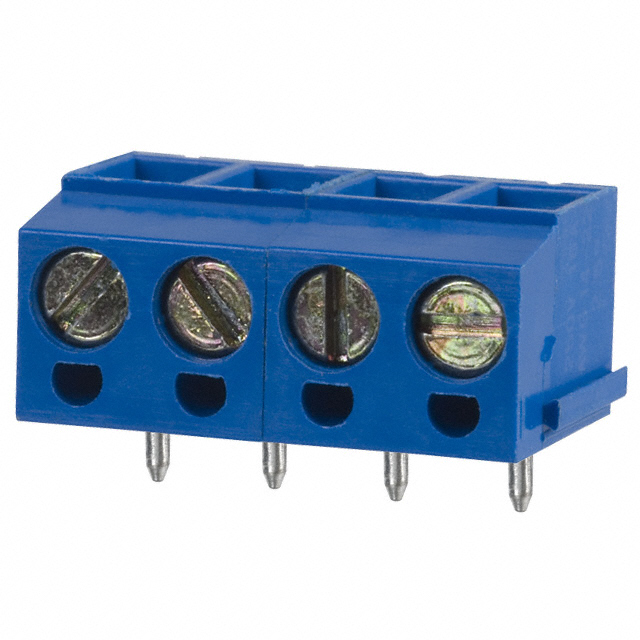

 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 2.6 Lb-In | 0.3 Nm | Stainless Steel | Steel - Zinc Plated | Tin Plated | Thermoplastic | 4 | 1 | Blue | 14 AWG | 22 AWG | Through Hole | Interlocking (Side) | 16 A | 5 mm | 0.197 in | Vertical with Board | Screw - Leaf Spring Wire Guard |
