438 Series

Manufacturer: EDAC Inc.

Catalog

STANDARD CARD EDGE CONNECTORS CARD EDGE METAL TO METAL 2 PIECE CONNECTORS

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness	Card Thickness	Contact Material	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows [custom]	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Card Type	Gender	Color	Number of Positions	Material Flammability Rating	Note

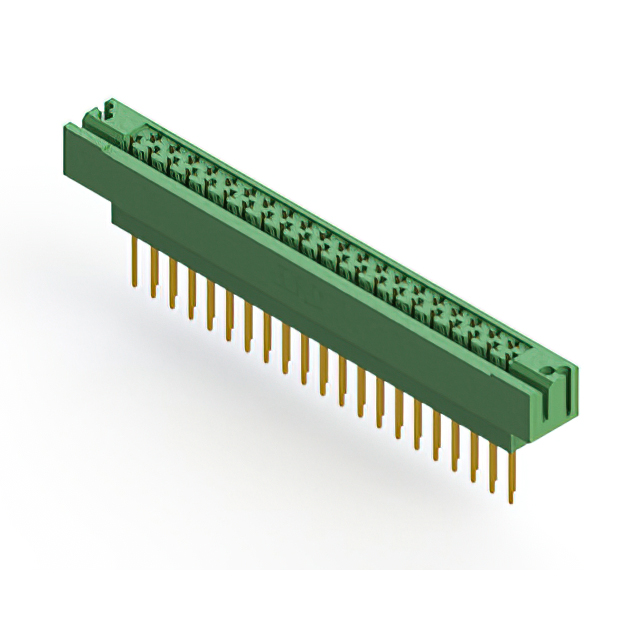

EDAC Inc. 438-041-540-122	Diallyl Phthalate (DAP)	2	41	-65 ░C	125 °C	2.36 mm	0.093 "	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Wire Wrap	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green
EDAC Inc. 438-047-540-122				-65 ░C	125 °C	2.36 mm	0.093 "	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Wire Wrap	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green	47
EDAC Inc. 438-047-500-112	Diallyl Phthalate (DAP)	2		-65 ░C	125 °C	1.57 mm	0.062 in	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Solder Eyelet(s)	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green	47
EDAC Inc. 438-035-542-112			35	-65 ░C	125 °C	1.57 mm	0.062 in	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Wire Wrap	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green
EDAC Inc. 438-029-541-112			29	-65 ░C	125 °C	1.57 mm	0.062 in	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Wire Wrap	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green
EDAC Inc. 438-035-520-122			35	-65 ░C	125 °C	2.36 mm	0.093 "	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Solder	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green
EDAC Inc. 438-029-540-112			29	-65 ░C	125 °C	1.57 mm	0.062 in	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Wire Wrap	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green

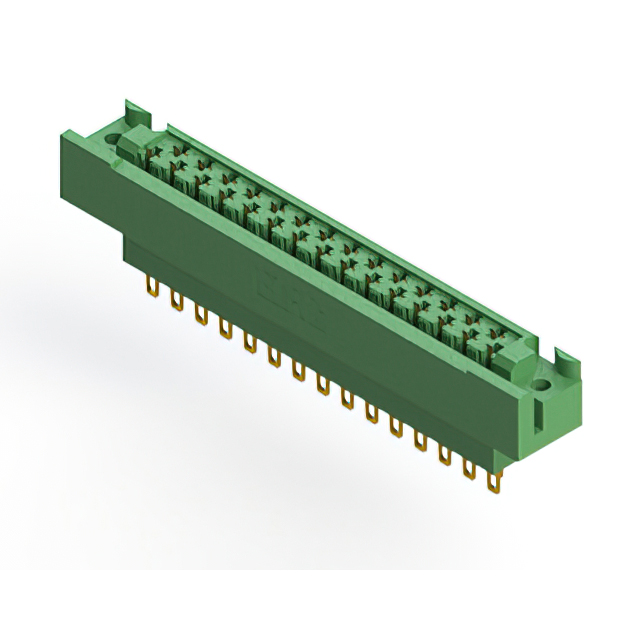

EDAC Inc. 438-029-500-122	Diallyl Phthalate (DAP)	2	29	-65 ░C	125 °C	2.36 mm	0.093 "	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Solder Eyelet(s)	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green
EDAC Inc. 438-017-000-112	Polyphenylene Sulfide (PPS)			-65 ░C	125 °C	1.57 mm	0.062 in		5.08 mm	0.2 in						3.25 mm	0.128 "		Non Specified - Dual Edge		Green		UL94 V-0	Contacts Not Included
EDAC Inc. 438-017-540-122	Diallyl Phthalate (DAP)	2		-65 ░C	125 °C	2.36 mm	0.093 "	Copper Alloy	5.08 mm	0.2 in	0.25 Ám	10 Áin	Wire Wrap	2	Gold	3.25 mm	0.128 "	Panel Mount Through Hole	Non Specified - Dual Edge	Female	Green
