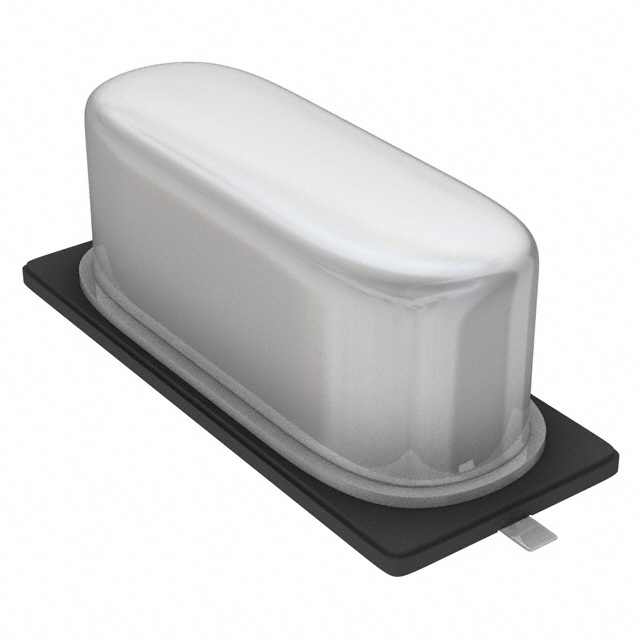

ABLS-LR Series

Catalog

CRYSTALS XTAL HC-49/US SMD 4.5MM HEIGHT 16.384MHZ TOL +/-50PPM STAB +/-50PPM 0°C ~ 70°C 18PF 10 OHMS

Part	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Operating Mode	Supplier Device Package	Operating Temperature [Max]	Frequency Stability	ESR (Equivalent Series Resistance)	Frequency	Type	Load Capacitance	Package / Case	Mounting Type	Frequency Tolerance
Abracon LLC ABLS-LR-16.384MHZ-T	0.185 in	0.449 in	4.2 mm	0.165 "	Fundamental	HC-49/US	70 °C	50 ppm	10 Ohm	16.384 MHz	MHz Crystal	18 pF	HC-49/US	Surface Mount	50 ppm
Abracon LLC ABLS-LR-3.072MHZ-T	0.185 in	0.449 in	4.2 mm	0.165 "	Fundamental	HC-49/US	70 °C	100 ppm	100 Ohms	3.072 MHz	MHz Crystal	18 pF	HC-49/US	Surface Mount	50 ppm
Abracon LLC ABLS-LR-4.9152MHZ-T	0.185 in	0.449 in	4.2 mm	0.165 "	Fundamental	HC-49/US	70 °C	50 ppm	25 Ohm	4.9152 MHz	MHz Crystal	18 pF	HC-49/US	Surface Mount	50 ppm
Abracon LLC ABLS-LR-13.000MHZ-T	0.185 in	0.449 in	4.2 mm	0.165 "	Fundamental	HC-49/US	70 °C	50 ppm	10 Ohm	13 MHz	MHz Crystal	18 pF	HC-49/US	Surface Mount	50 ppm
