5962-9078501 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

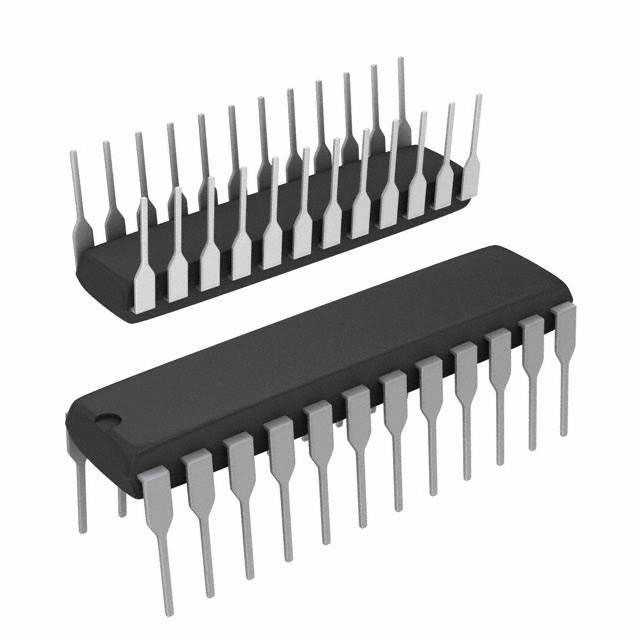

DAC 2-CH R-2R 12-BIT 24-PIN CDIP TUBE
| Part | Package Name | Mounting Type | Voltage - Supply, Analog (Maximum) | Voltage - Supply, Analog (Nominal Positive) | Voltage - Supply, Analog (Nominal Negative) | Operating Temperature (Max) | Operating Temperature (Min) | DNL (Max) (LSB) | INL (Max) (LSB) | Architecture | Settling Time | Reference Type | Differential Output | Voltage - Supply, Digital (Typical Maximum) | Voltage - Supply, Digital (Typical Minimum) | Data Interface | Number of Bits | Number of D/A Converters | Package Width | Package Length | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 24-CDIP | Through Hole | 15.75 V | 11.4 V | -11.4 V | 125 °C | -55 °C | 0.9 LSB | 0.5 LSB | R-2R | 10 µs | External Internal | No | 15.75 V | 11.4 V | Parallel | 12 bits | 2 count | 7.62 mm | 0.3 in | Voltage - Buffered |
