A3UL-TBR Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Mechanical Life	Electrical Life	Termination Style	Actuator Type	Illumination Type, Color	Voltage Rating - DC	Illumination Voltage (Nominal)	Color - Actuator/Cap	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ingress Protection	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Switch Function	Circuit	Actuator Marking
Omron Automation and Safety A3UL-TBR-2A1C-M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	12 VDC	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP40	100 mA	25.2 mm	On-Mom	SPDT	No Marking
Omron Automation and Safety A3UL-TBR-1A2C-5M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	5 VDC	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP65	100 mA	25.2 mm	On-Mom	DPDT	No Marking

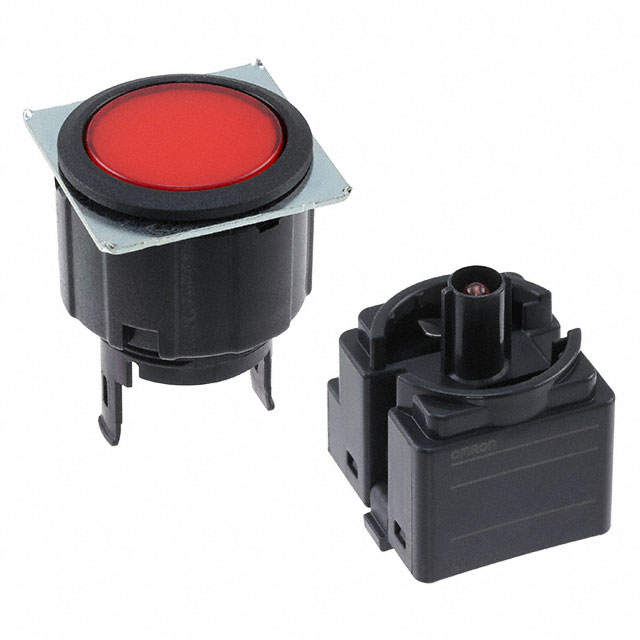

Omron Automation and Safety A3UL-TBR-3A1C-M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	24 V	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP40	100 mA	25.2 mm	On-Mom	SPDT	No Marking
Omron Automation and Safety A3UL-TBR-1A1C-M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	5 VDC	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP40	100 mA	25.2 mm	On-Mom	SPDT	No Marking
Omron Automation and Safety A3UL-TBR-1A1C-5M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	5 VDC	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP65	100 mA	25.2 mm	On-Mom	SPDT	No Marking
Omron Automation and Safety A3UL-TBR-3A2C-M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	24 V	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP40	100 mA	25.2 mm	On-Mom	DPDT	No Marking
Omron Automation and Safety A3UL-TBR-3A2C-5M	1000000 Cycles	200000 Cycles	Connector	Button Flush Round	LED Red	30 V	24 V	Clear	Panel Mount Front	55 °C	-20 ░C	Illuminated Standard	IP65	100 mA	25.2 mm	On-Mom	DPDT	No Marking
