C44PKG Series
Manufacturer: KEMET
Beta
⌘K

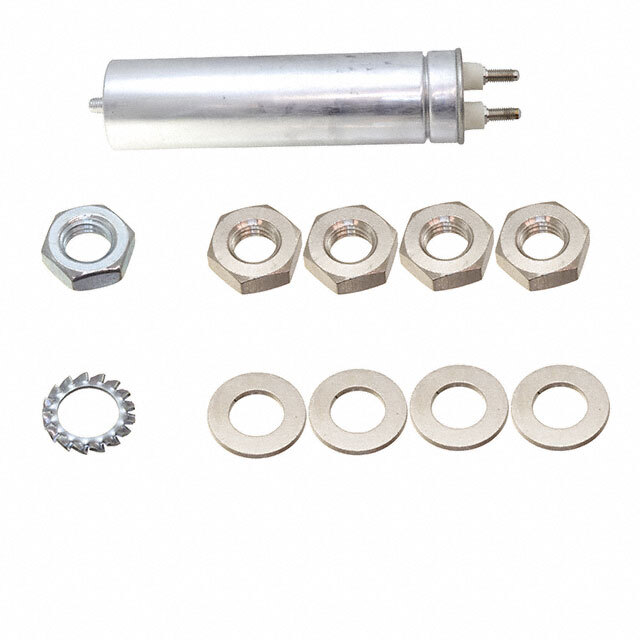

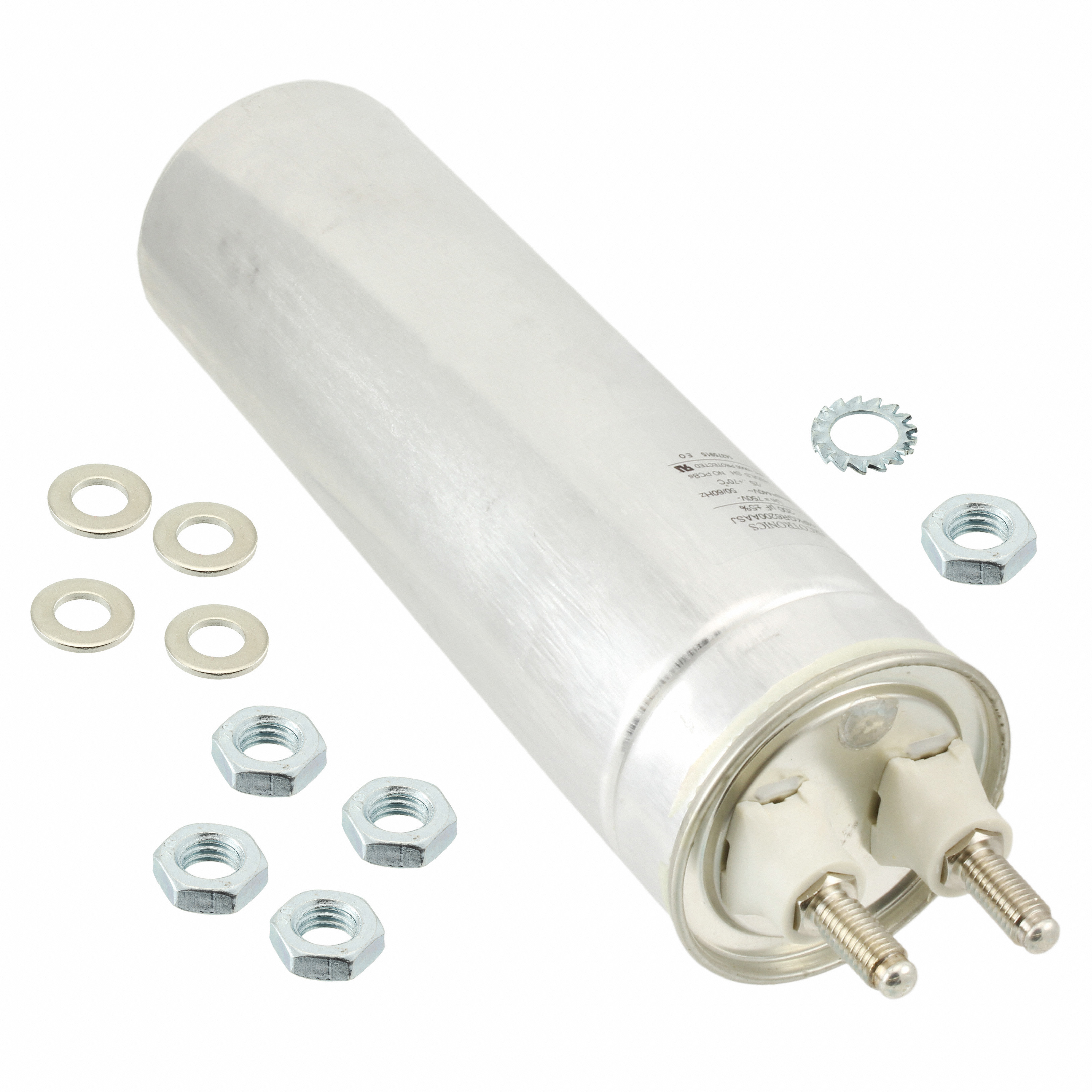

CAP FILM 100UF 5% 1KVDC RADIAL
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Voltage Rating - DC | Applications | Dielectric Material | Features | Tolerance | Package / Case | Termination | Lead Spacing | Lead Spacing | Lead Spacing | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 199 mm | 7.835 in | 100 µF | 440 V | 2.559 in | 65 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.102 in | 28 mm | ||||
KEMET | 249 mm | 9.803 " | 440 V | 2.953 in | 75 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.378 " | 35 mm | |||||
 KEMET | 249 mm | 9.803 " | 133 µF | 440 V | 2.559 in | 65 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.102 in | 28 mm | ||||
 KEMET | 199 mm | 7.835 in | 120 µF | 440 V | 2.559 in | 65 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 10 % | Can Radial | Threaded Male | 1.102 in | 28 mm | ||||
 KEMET | 249 mm | 9.803 " | 440 V | 2.953 in | 75 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 2.953 in | 75 mm | |||||
KEMET | 249 mm | 9.803 " | 150 µF | 440 V | 2.559 in | 65 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.102 in | 28 mm | 2.8 mOhms | |||
KEMET | 199 mm | 7.835 in | 133 µF | 440 V | 2.953 in | 75 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.378 " | 35 mm | ||||
KEMET | 100 µF | 440 V | 2.953 in | 75 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.378 " | 35 mm | 149 mm | 5.866 in | ||||
KEMET | 249 mm | 9.803 " | 300 µF | 440 V | 3.346 " | 85 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 10 % | Can Radial | Threaded Male | 1.378 " | 35 mm | ||||
KEMET | 249 mm | 9.803 " | 250 µF | 440 V | 3.346 " | 85 mm | Chassis Stud Mount | -25 °C | 70 °C | 1 kV | 1 kVDC | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Polypropylene (PP) Metallized | Long Life | 5 % | Can Radial | Threaded Male | 1.378 " | 35 mm |
