90156 Series
Manufacturer: Preci-Dip
Beta
⌘K

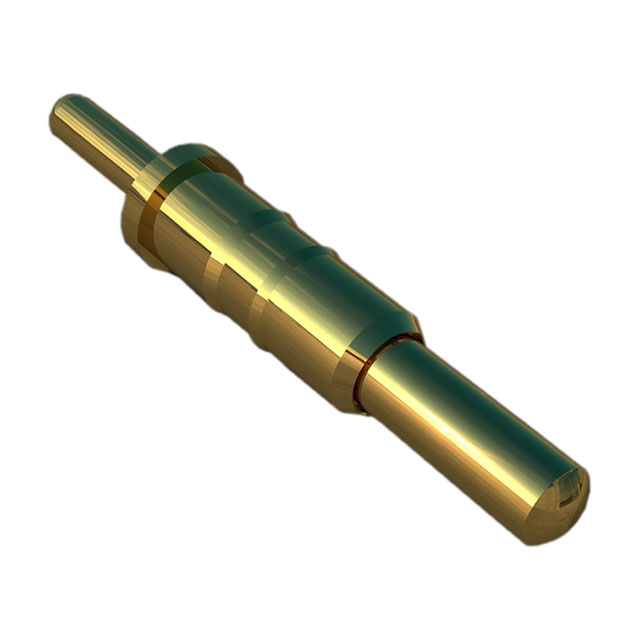

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Contact Finish | Contact Type | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Initial | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Operating Force - Mid Compression |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.24 in | 6.1 mm | Gold | Sleeve & Plunger (Pogo Pins) | 3 A | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | Brass Alloy | 0.072 in | 1.83 mm | 25.49 gf | Through Hole | 0.295 in | 7.49 mm | 40000 | 86.68 gf |
