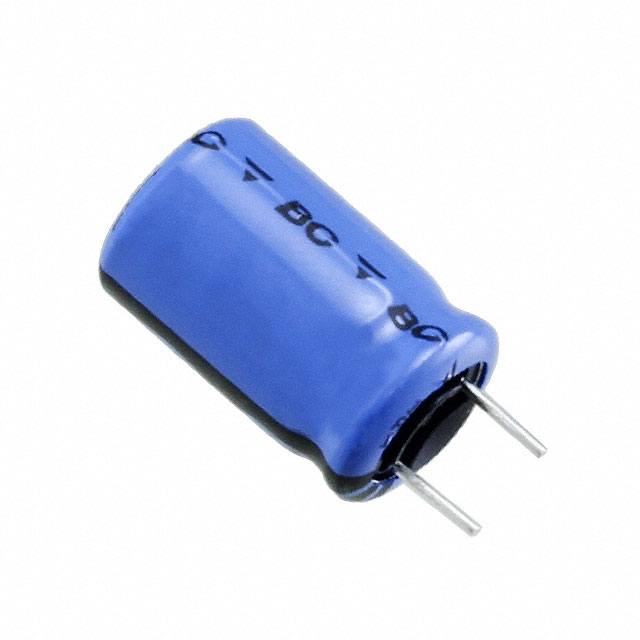

136 RVI Series

Catalog

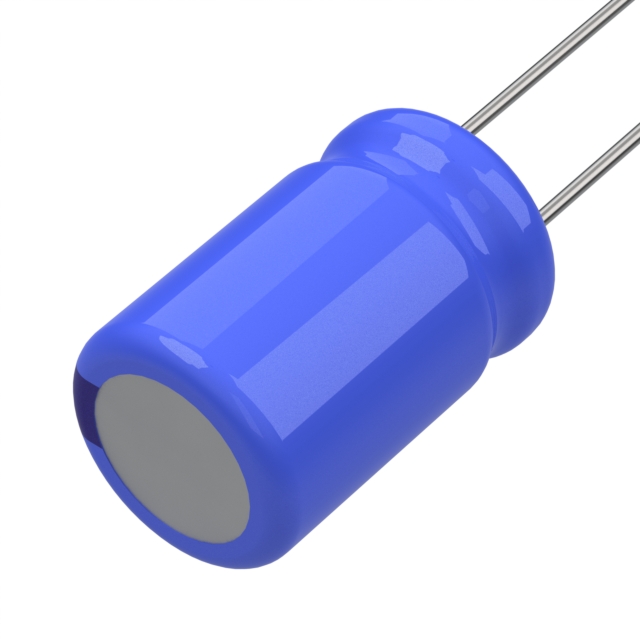

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 470UF 35V 20% 12.5 X 20

Part	Capacitance	Mounting Type	Impedance	Polarization	Height - Seated (Max)	Lead Spacing	Voltage - Rated	Applications	Ripple Current	Tolerance	Operating Temperature (Min)	Operating Temperature (Max)	Lifetime	Size / Dimension Diameter	Package / Case
Vishay Dale MAL213650471E3	470 µF	Through Hole	48 mOhm	Polar	0.866 in	0.197 in	35 V	General Purpose	650 mA	20 %	-55 °C	105 °C	7000 Hrs	0.492 in	Can Radial
Vishay Dale MAL213639101E3	100 µF	Through Hole	150 mOhms	Polar	0.866 in	0.197 in	100 VAC/DC	General Purpose	280 mA	20 %	-55 °C	105 °C	7000 Hrs	0.492 in	Can Radial
Vishay Dale MAL213668101E3	100 µF	Through Hole	190 mOhms	Polar	0.689 in	0.197 in	63 V	General Purpose	203 mA	20 %	-55 °C	105 °C	6000 Hrs	0.394 in	Can Radial
Vishay Dale MAL213651681E3	680 µF	Through Hole	50 mOhm	Polar	0.866 in	0.197 in	50 V	General Purpose	840 mA	20 %	-55 °C	105 °C	7000 Hrs	0.63 in	Can Radial
Vishay Dale MAL213639479E3	47 µF	Through Hole	320 mOhm	Polar	0.689 in	0.197 in	100 VAC/DC	General Purpose	157.5 mA	20 %	-55 °C	105 °C	6000 Hrs	0.394 in	Can Radial
Vishay Dale MAL213638101E3	100 µF	Through Hole	190 mOhms	Polar	0.689 in	0.197 in	63 V	General Purpose	203 mA	20 %	-55 °C	105 °C	6000 Hrs	0.394 in	Can Radial
