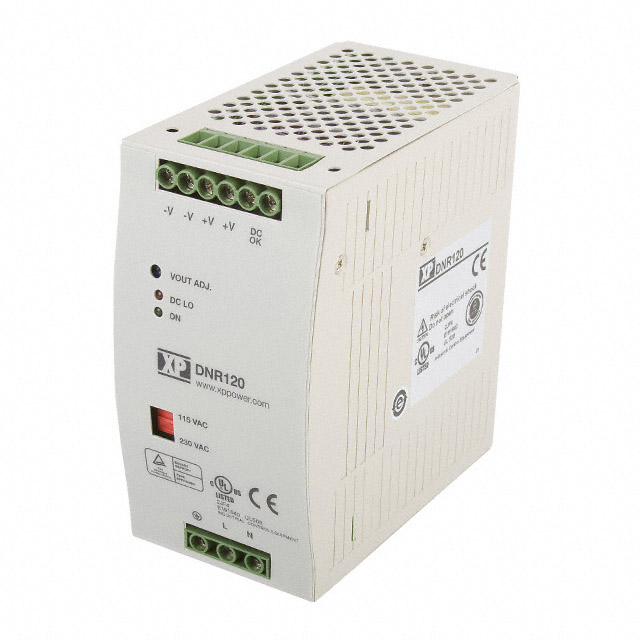

DNR120 Series

Manufacturer: XP Power

Catalog

DIN RAIL POWER SUPPLIES POWER SUPPLY, 120 WATT SWITCHER, DIN RAIL MOUNT

Part	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Applications	Power (Watts)	Voltage - Isolation	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Approval Agency	Standard Number	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]
XP Power DNR120AS48-I	48 V	63.5 mm	2.5 "	116 mm	4.92 in	125 mm	4.57 "	Hazardous Locations Industrial ITE (Commercial)	120 W	3000 V	132 VAC 264 VAC	90 VAC 180 VAC	Adjustable Output Universal Input	CE	62368-1	1	2.5 A	87 %	AC	70 °C	-35 °C
XP Power DNR120AS24-I	24 V	63.5 mm	2.5 "	116 mm	4.92 in	125 mm	4.57 "	Hazardous Locations Industrial ITE (Commercial)	120 W	3000 V	132 VAC 264 VAC	90 VAC 180 VAC	Adjustable Output Universal Input	CE	62368-1	1		86 %	AC	70 °C	-35 °C	5 A

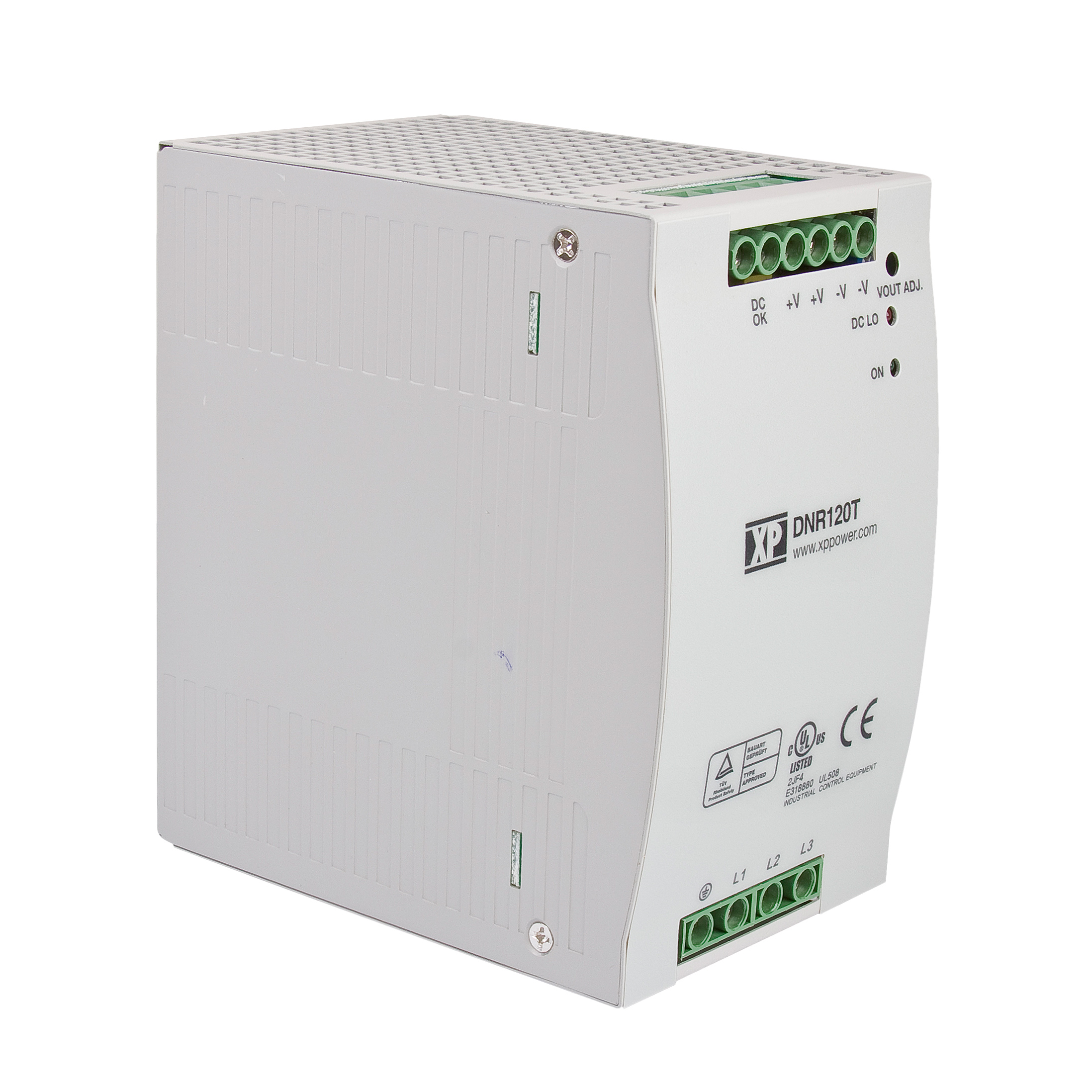

XP Power DNR120TS12	12 V		2.93 in	111.3 mm	4.87 "		4.39 in	Hazardous Locations Industrial ITE (Commercial)	120 W	3000 V	575 VAC	340 VAC	Adjustable Output Load Sharing		62368-1	1	10 A	87 %	AC				123.6 mm	74.3 mm
