4828 Series

Catalog

IC & COMPONENT SOCKET, 28 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 7.62 MM, PHOSPHOR BRONZE

Part	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Termination	Contact Material - Post	Features	Type	Type	Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Pitch - Post	Pitch - Post	Type [custom]	Type [custom]

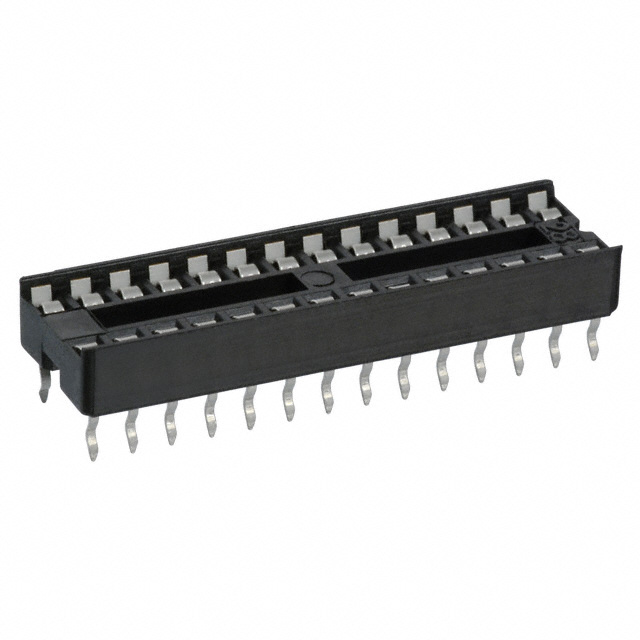

3M Electronic Specialty 4828-3004-CP	1 A	UL94 V-0	Tin	Solder	Phosphor Bronze	Open Frame	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	85 °C	-25 °C	Polyester Glass Filled	0.9 µm	35.4 µin	28	Phosphor Bronze	35 µin	0.9 µm	Through Hole	0.1 in	2.54 mm
3M Electronic Specialty 4828-6004-CP	1 A	UL94 V-0	Tin	Solder	Phosphor Bronze	Open Frame			DIP	0.1 "	2.54 mm	85 °C	-25 °C	Polyester Glass Filled	0.9 µm	35.4 µin	28	Phosphor Bronze	35 µin	0.9 µm	Through Hole	0.1 in	2.54 mm	15.24 mm	0.6 in
