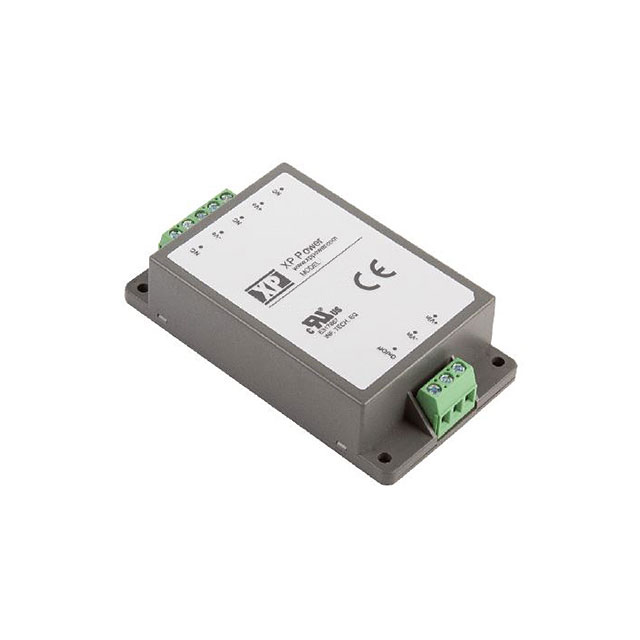

DTE20 Series

Manufacturer: XP Power

Catalog

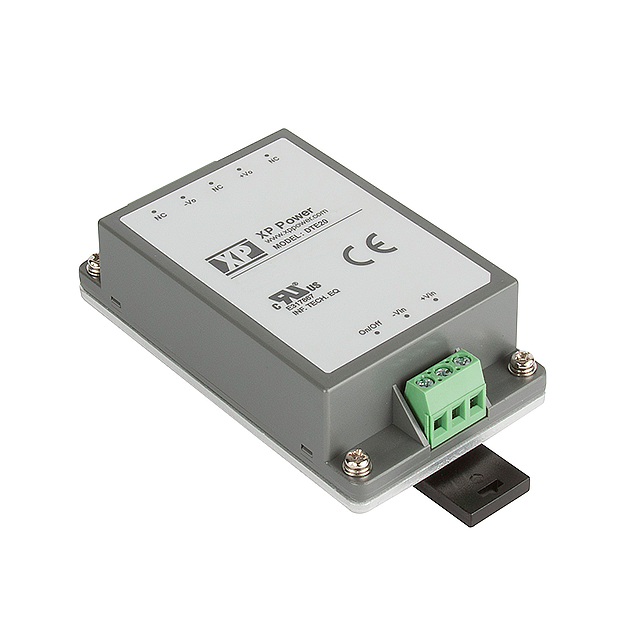

DIN RAIL CLIP FOR DTE20 DIN RAIL

Part	Accessory Type	For Use With/Related Products	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Power (Watts)	Efficiency	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Standard Number	Approval Agency	Voltage - Input (Min) [Min]	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]

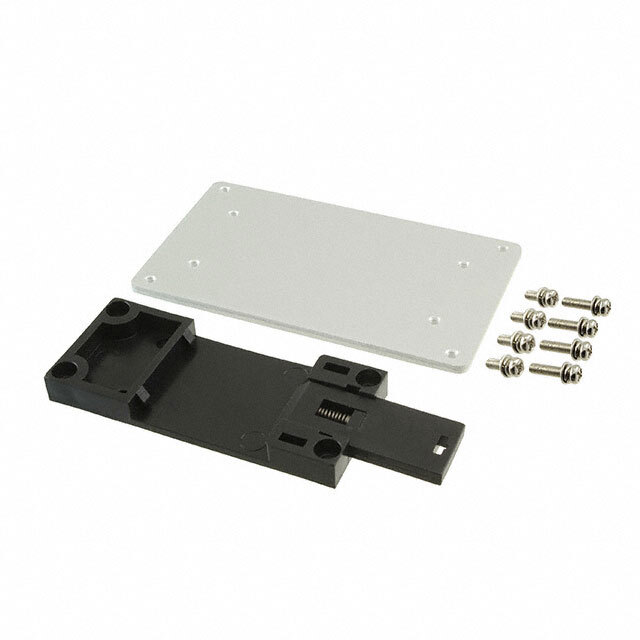

XP Power DTE20 DIN CLIP	DIN Rail Clip	DTE20 DIN Rail
XP Power DTE2024S48			420 mA	Chassis Mount	23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in	Enclosed	20 W	89 %	48 V	ITE (Commercial)	36 V	85 °C	-40 C	1	62368-1	CB CE cURus	9 V
XP Power DTE2024S12			1.67 A	Chassis Mount	23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in	Enclosed	20 W	90 %	12 V	ITE (Commercial)	36 V	85 °C	-40 C	1	62368-1	CB CE cURus	9 V
XP Power DTE2048S48			420 mA	Chassis Mount	23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in	Enclosed	20 W	90 %	48 V	ITE (Commercial)	75 V	85 °C	-40 C	1	62368-1	CB CE cURus	18 V
XP Power DTE2024S12-D			1.67 A		23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in		20 W	90 %	12 V	ITE (Commercial)		85 °C	-40 C	1	62368-1	CB CE cURus		9 V	DC	36 V
XP Power DTE2024S24			835 mA	Chassis Mount	23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in	Enclosed	20 W	90 %	24 V	ITE (Commercial)	36 V	85 °C	-40 C	1	62368-1	CB CE cURus	9 V
XP Power DTE2048S5V1			4 A	Chassis Mount	23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in	Enclosed	20 W	89 %	5.1 V	ITE (Commercial)	75 V	85 °C	-40 C	1	62368-1	CB CE cURus	18 V
XP Power DTE2024S5V1			4 A	Chassis Mount	23.3 mm	96 mm	2.13 in	3.78 in	54 mm	0.92 in	Enclosed	20 W	90 %	5.1 V	ITE (Commercial)	36 V	85 °C	-40 C	1	62368-1	CB CE cURus	9 V
