RV1S2211A Series

Catalog

DC INPUT/SINGLE TRANSISTOR OUTPUT PHOTOCOUPLERS (OPTOCOUPLERS)

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Current Transfer Ratio (Max)	Number of Channels [custom]	Input Type	Voltage - Output (Max) [Max]	Current Transfer Ratio (Min) [Min]	Current - Output / Channel	Package / Case	Package / Case	Package / Case	Supplier Device Package	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)
Renesas Electronics Corporation RV1S2211ACCSP-10YV#KC0	5 µs	4 µs	115 °C	-40 C	Surface Mount	Transistor	400 %	1	DC	40 V	100 %	40 mA	4-SOP	7.5 mm	0.295 "	4-LSSOP	300 mV	30 mA	1.15 V
Renesas Electronics Corporation RV1S2211ACCSP-10YV#SC0	5 µs	4 µs	115 °C	-40 C	Surface Mount	Transistor	400 %	1	DC	40 V	100 %	40 mA	4-SOP	7.5 mm	0.295 "	4-LSSOP	300 mV	30 mA	1.15 V

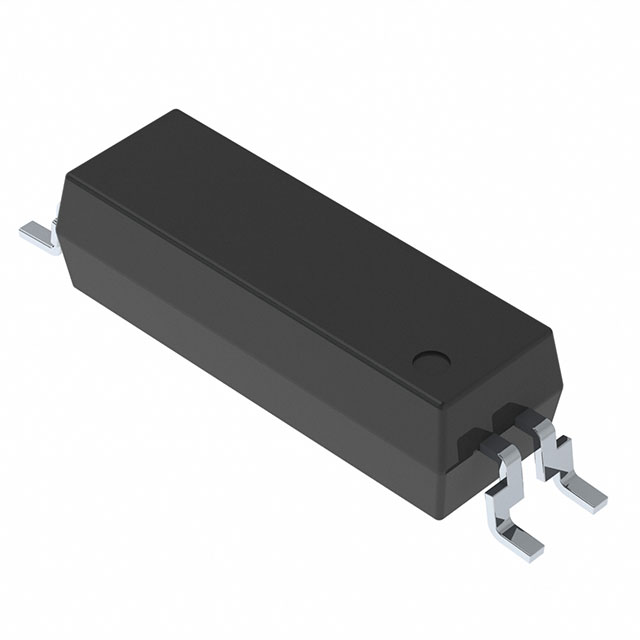

Renesas Electronics Corporation RV1S2211ACCSP-10YC#SC0	5 µs	4 µs	115 °C	-40 C	Surface Mount	Transistor	400 %	1	DC	40 V	100 %	40 mA	4-SOP	7.5 mm	0.295 "	4-LSSOP	300 mV	30 mA	1.15 V
Renesas Electronics Corporation RV1S2211ACCSP-10YC#KC0	5 µs	4 µs	115 °C	-40 C	Surface Mount	Transistor	400 %	1	DC	40 V	100 %	40 mA	4-SOP	7.5 mm	0.295 "	4-LSSOP	300 mV	30 mA	1.15 V
