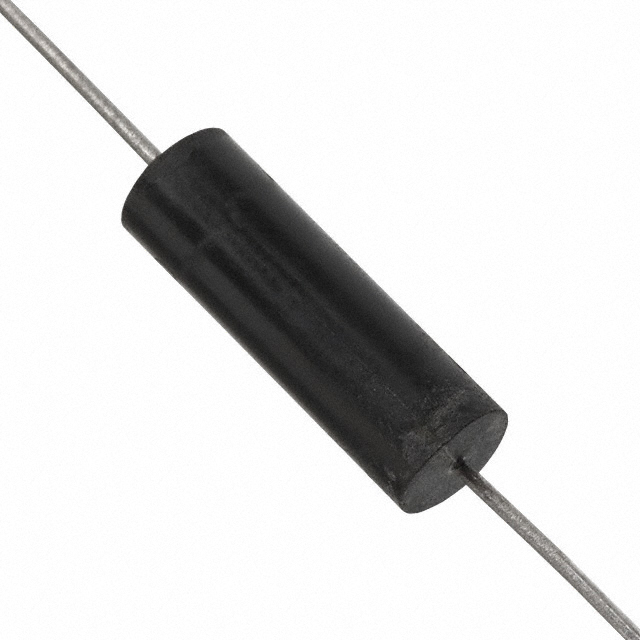

2474/R Series

Manufacturer: Delevan

Catalog

POWER INDUCTORS - LEADED 8.2UH 10% .028OHM THRUHOLE CHK PWR IND

Part	Shielding	Current - Saturation (Isat)	Tolerance	Package / Case	Material - Core	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Mounting Type	Type	DC Resistance (DCR) [Max]
Delevan 2474R-12K	Unshielded	2.2 A	10 %	Axial	Ferrite	8.2 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	3.55 A	-55 C	125 °C	28 mOhm	Through Hole	Molded
Delevan 2474-09K	Unshielded	2.9 A	10 %	Axial	Ferrite	4.7 ÁH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	4.01 A	-55 C	125 °C		Through Hole	Molded
Delevan 2474R-07K	Unshielded	3.5 A	10 %	Axial	Ferrite	3.3 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	4.7 A	-55 C	125 °C		Through Hole	Molded	16 mOhm
Delevan 2474-43K	Unshielded	110 mA	10 %	Axial	Ferrite	3300 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	0.23 A	-55 C	125 °C		Through Hole	Molded	6.56 Ohm
Delevan 2474-05K	Unshielded	4.3 A	10 %	Axial	Ferrite	2.2 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	5.22 A	-55 C	125 °C		Through Hole	Molded	13 mOhm
Delevan 2474-36K	Unshielded	220 mA	10 %	Axial	Ferrite	820 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	0.42 A	-55 C	125 °C		Through Hole	Molded	1.98 Ohm
Delevan 2474R-10L	Unshielded	2.7 A	15 %	Axial	Ferrite	5.6 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	3.84 A	-55 C	125 °C	24 mOhm	Through Hole	Molded
Delevan 2474-33L	Unshielded	290 mA	15 %	Axial	Ferrite	470 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	590 mA	-55 C	125 °C		Through Hole	Molded	1.03 Ohm
Delevan 2474-52L	Unshielded	50 mA	15 %	Axial	Ferrite	18 mH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	0.09 A	-55 C	125 °C		Through Hole	Molded	40 Ohm
Delevan 2474R-13L	Unshielded	2 A	15 %	Axial	Ferrite	10 µH	6.1 mm	0.24 "	0.74 "	18.8 mm	1 kHz	3.27 A	-55 C	125 °C	33 mOhm	Through Hole	Molded
