1546728 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

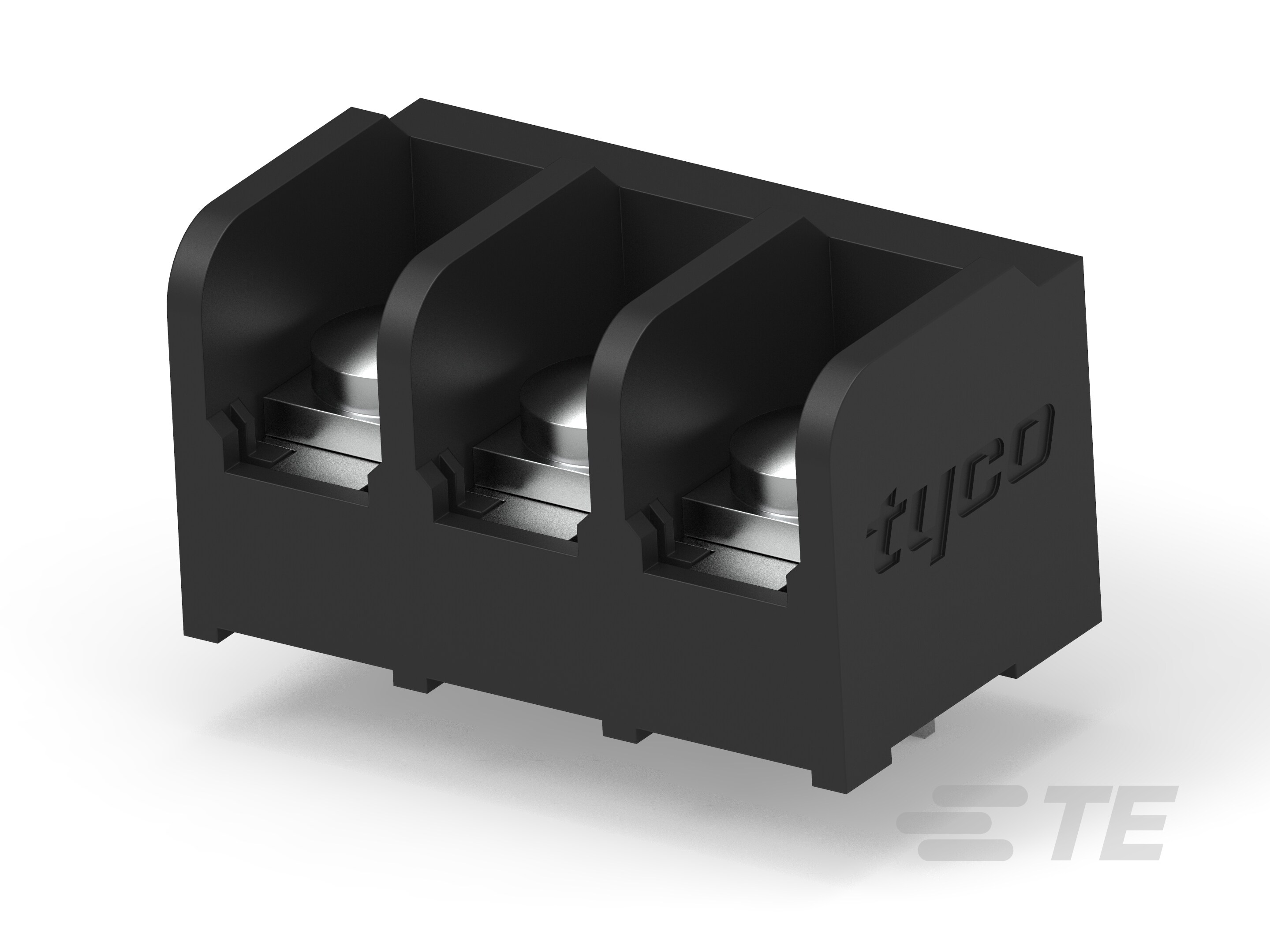

CONN BARRIER STRIP 3CIRC 0.438"
| Part | Terminal Screw Material | Mounting Type | Terminal Screw Finish | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Material - Insulation | Number of Wire Entries | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Block Type | Number of Rows | Number of Circuits | Top Termination | Bottom Termination | Color | Current Rating (Amps) | Barrier Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Steel | Through Hole | Zinc | 120 °C | -40 C | UL94 V-0 | Thermoplastic | 3 | 0.438 in | 11.12 mm | 10 AWG | 18 AWG | Barrier Block | 1 | 3 | Screws with Captive Plate | PC Pin | Black | 30 A | 3 Wall (Tri) | Positions Stamped | 600 V |
