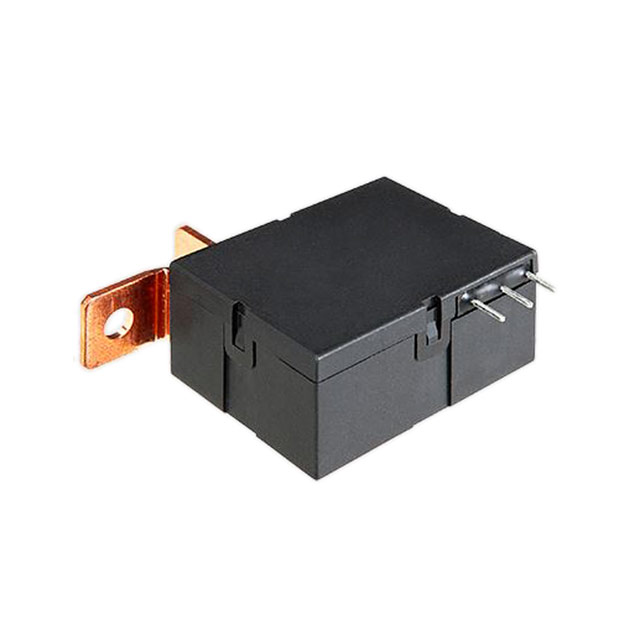

ADZS22 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
GENERAL PURPOSE RELAYS HIGH CAPACITY PANEL MOUNT
| Part | Coil Resistance | Contact Rating (Current) | Coil Voltage | Coil Current | Contact Material | Relay Type | Load - Max Switching | Switching Voltage [Max] | Contact Form | Must Operate Voltage | Coil Type | Operate Time | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 8.3 Ohms | 90 A | 5 VDC | 600 mA | Silver Tin Oxide (AgSnO) | General Purpose | 24840 VA | 276 VAC | SPST-NO (1 Form A) | 3.5 VDC | Dual Coil Latching | 20 ms | Screw Terminal | 85 °C | -40 C | 20 ms | Chassis Mount |
 Panasonic Electronic Components | 48 Ohms | 90 A | 12 VDC | 250 mA | Silver Tin Oxide (AgSnO) | General Purpose | 24840 VA | 276 VAC | SPST-NO (1 Form A) | 8.4 VDC | Dual Coil Latching | 20 ms | Screw Terminal | 85 °C | -40 C | 20 ms | Chassis Mount |
 Panasonic Electronic Components |
