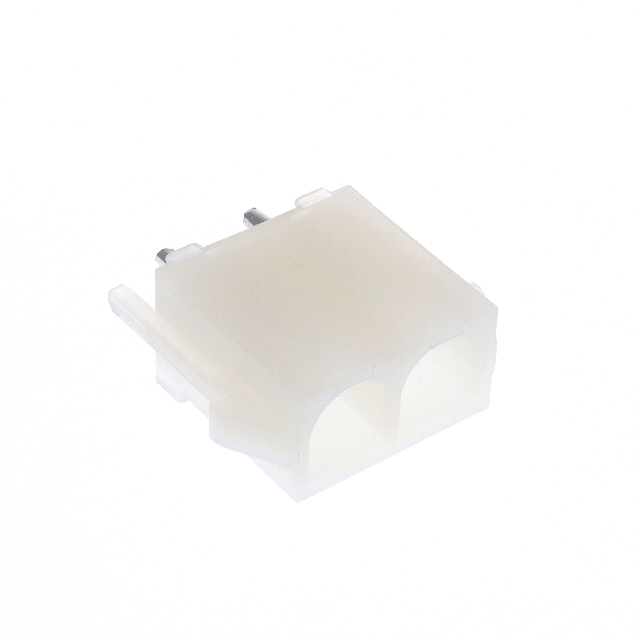

DME-02 Series
Manufacturer: Adam Tech
Beta
⌘K
PCB MOUNT PIN HEADER (W/ POLARIZ
| Part | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post | Contact Shape | Contact Finish - Post | Fastening Type | Shrouding | Contact Type | Insulation Color | Termination | Material Flammability Rating | Number of Rows | Features | Insulation Material | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions Loaded | Mounting Type | Style | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 0.581 " | 14.75 mm 14.76 mm | 12 Amps | 0.157 in | 4 mm | Circular | Tin | Locking Ramp | Shrouded - 4 Wall | Male Pin | Natural | Solder | UL94 V-2 | 1 | Board Guide | Nylon 6/6 Polyamide (PA66) | 6.35 mm | 0.25 in | Header | All | Through Hole | Board to Cable/Wire | Phosphor Bronze | 2 | -40 C | 105 ░C |
