5660-0 Series

Catalog

CONN RECEPT PIN .015-.025" .200"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter	Mounting Hole Diameter	Tail Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 5660-0-15-01-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.068 in	1.73 mm	Solder	4.57 mm	0.18 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.3 mm	0.051 in	No Tail	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 5660-0-15-15-30-27-10-0	-55 C	125 °C	Beryllium Copper	0.068 in	1.73 mm	Solder	4.57 mm	0.18 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.3 mm	0.051 in	No Tail	Gold	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 5660-0-15-01-30-27-10-0	-55 C	125 °C	Beryllium Copper	0.068 in	1.73 mm	Solder	4.57 mm	0.18 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.3 mm	0.051 in	No Tail	Gold	0.76 Ám	30 Áin

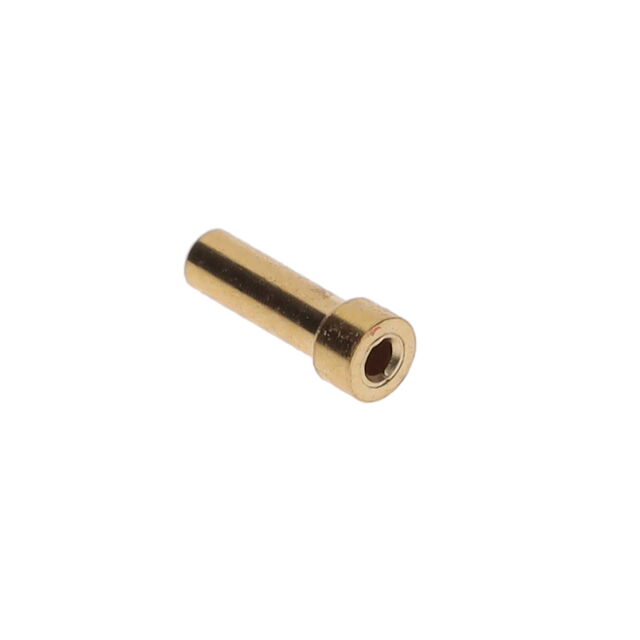

Mill-Max Manufacturing Corp. 5660-0-15-15-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.068 in	1.73 mm	Solder	4.57 mm	0.18 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.3 mm	0.051 in	Standard Tail	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 5660-0-15-80-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.068 in	1.73 mm	Solder	4.57 mm	0.18 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.3 mm	0.051 in	Standard Tail	Gold	0.25 Ám	10 Áin
