PPTC042 Series

Catalog

CONN HDR 8POS 0.1 TIN PCB R/A

Part	Contact Shape	Contact Material	Insulation Material	Fastening Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Connector Type	Number of Positions	Insulation Height

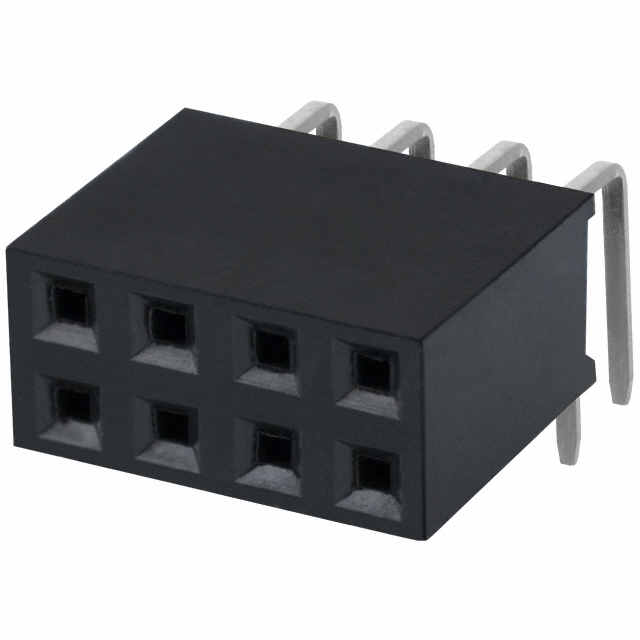

Sullins Connector Solutions PPTC042LJBN	Square	Phosphor Bronze	Polyester	Push-Pull	0.2 in	5.08 mm	2	0.1 in	2.54 mm	3 A	-40 C	105 ░C	250 V	Right Angle Through Hole	Female Socket	Black	0.1 "	2.54 mm	All	Solder	UL94 V-0	0.124 in	3.15 mm	Tin	Header	8
Sullins Connector Solutions PPTC042KFMS	Square	Phosphor Bronze	Polyester	Push-Pull	0.299 "		2	0.1 in	2.54 mm	3 A	-40 C	125 °C	250 V	Surface Mount	Female Socket	Black	0.1 "	2.54 mm	All	Solder	UL94 V-0			Tin	Header	8	7.6 mm
