A222Y50 Series

Manufacturer: Nicomatic

Catalog

FEM. 50POS STRAIGHT TRGH 1MM

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows [custom]	Voltage Rating	Features	Current Rating (Amps)	Insulation Height	Insulation Height	Termination	Contact Type	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions Loaded	Fastening Type

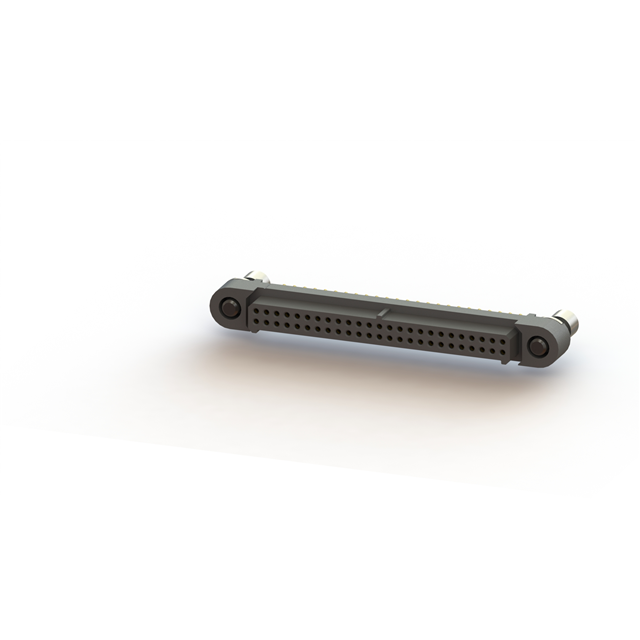

Nicomatic A222Y50V16	Circular	Liquid Crystal Polymer (LCP)	0.15 µm	5.9 µin	Copper Alloy	0.122 in	3.1 mm	Gold	5.9 µin	0.15 µm	2	600 VAC	Jackscrews Mating Flange Mounting Flange Polarizing Key	2.5 A	4.4 mm	0.173 in	Solder	Female Socket	Black	UL94 V-0	1 mm	0.039 in	Gold	-65 ░C	200 °C	50	Through Hole	0.039 in	1 mm	Receptacle	All

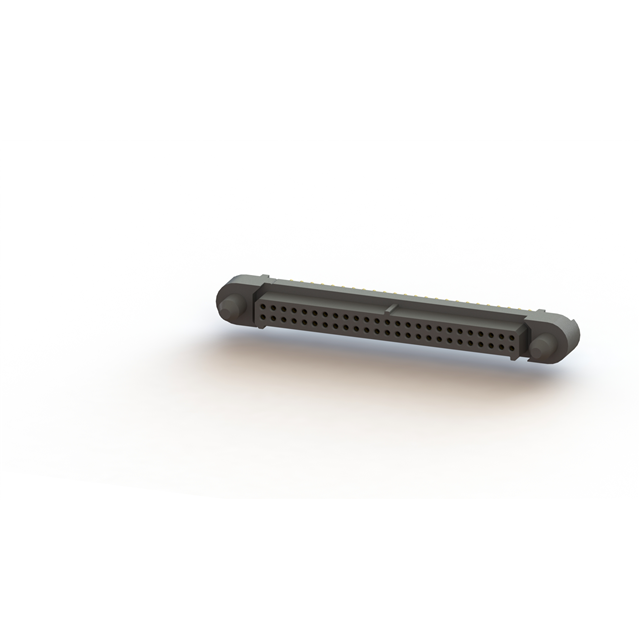

Nicomatic A222Y50R	Circular	Liquid Crystal Polymer (LCP)	0.15 µm	5.9 µin	Copper Alloy	0.122 in	3.1 mm	Gold	5.9 µin	0.15 µm	2	600 VAC	Guide Pin Mating Guide	2.5 A	4.4 mm	0.173 in	Solder	Female Socket	Black	UL94 V-0	1 mm	0.039 in	Gold	-65 ░C	200 °C	50	Through Hole	0.039 in	1 mm	Receptacle	All	Push-Pull
