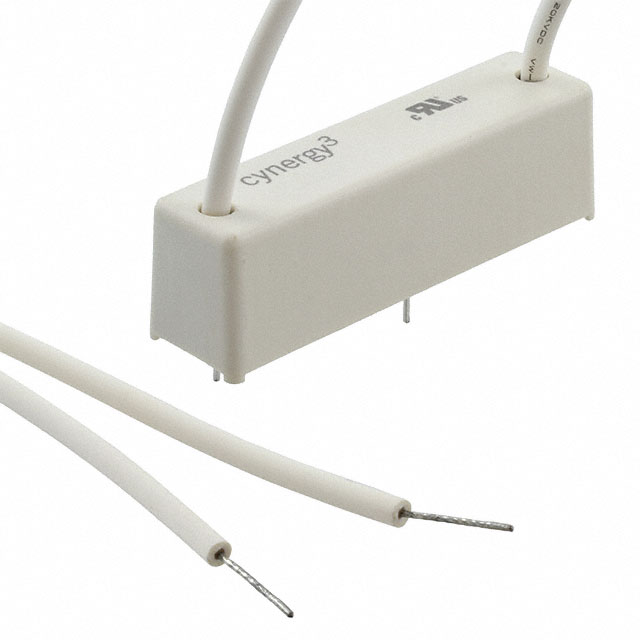

DBR70505 Series
Manufacturer: Sensata Technologies
Beta
⌘K
RELAY REED SPST-NC 5KV 5V
| Part | Contact Material | Release Time | Coil Voltage | Coil Current | Contact Form | Termination Style | Coil Type | Switching Voltage | Mounting Type | Operate Time | Contact Rating (Current) | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Must Operate Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata Technologies | Rhodium (Rh) | 3 ms | 5 VDC | 132 mA | SPST-NC (1 Form B) | PC Pin Wire Leads | Non Latching | 1000 VDC 1000 VAC | Through Hole | 2 ms | 3 A | 0.5 VDC | -20 C | 70 °C | 3.7 VDC | 38 Ohms |
Sensata Technologies | Rhodium (Rh) | 3 ms | 5 VDC | 132 mA | SPST-NC (1 Form B) | PC Pin | Non Latching | 1000 VDC 1000 VAC | Through Hole | 2 ms | 3 A | 0.5 VDC | -20 C | 70 °C | 3.7 VDC | 38 Ohms |
