T3710N06 Series
Manufacturer: INFINEON
Beta
⌘K

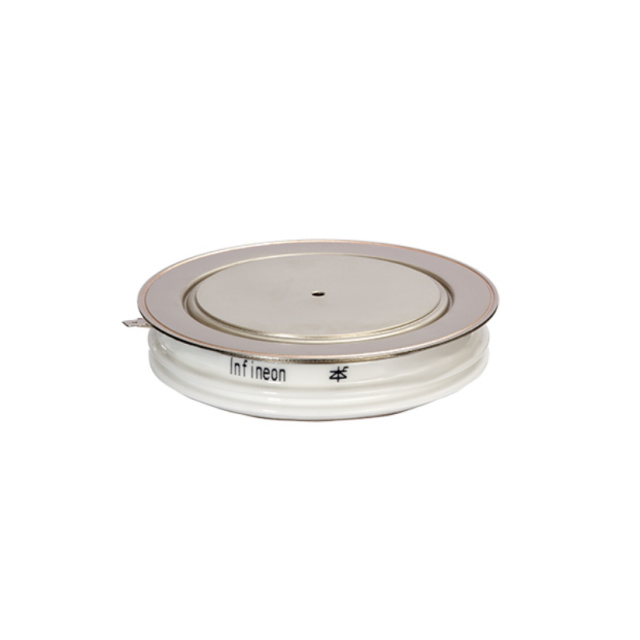

600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 100 MM DIA AND A HEIGHT OF 26 MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current - Gate Trigger (Igt) (Max) [Max] | Current - On State (It (RMS)) (Max) [Max] | Voltage - Gate Trigger (Vgt) (Max) | Current - On State (It (AV)) (Max) | Package / Case | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) [Max] | Structure | Voltage - Off State | Number of SCRs, Diodes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | -40 C | 140 °C | Chassis Mount | 250 mA | 7000 A | 1.5 V | 3710 A | DO-200AD | 70000 A | 300 mA | Single | 600 V | 1 SCR |
