PTS Series

Catalog

DIN RAIL TERMINAL BLOCKS PTS 2,5-QUATTRO BU

Part	Voltage - UL	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Color	Voltage - IEC	Current - UL	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Number of Positions	Terminal - Width [y]	Stripping Length	Material Flammability Rating	Material - Insulation
Phoenix Contact 3212002	600 V	Push In Spring	12 AWG	26 AWG	Feed Through	Blue	800 V	20 A	24 A	0.14 mm²	4 mm²	1	4	5.2 mm
Phoenix Contact 3214602		Push In Spring	14 AWG	26 AWG	Ground Earth	Green Yellow				0.14 mm²	1.5 mm²	1		3.5 mm

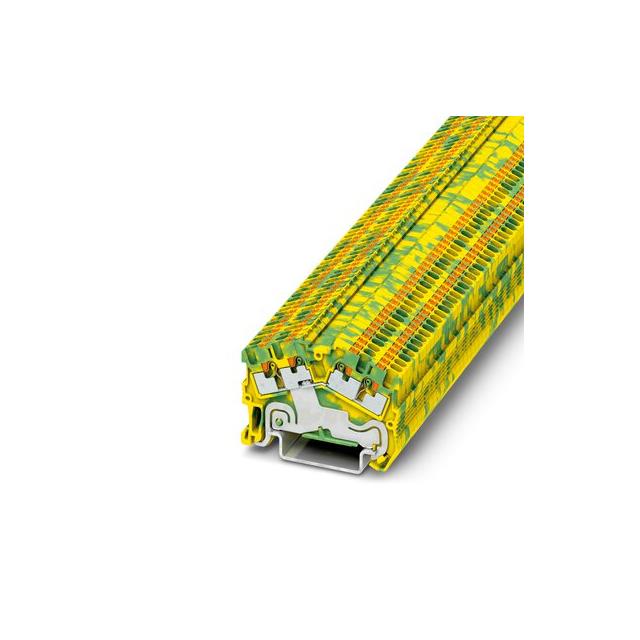

Phoenix Contact 3214644		Push In Spring	14 AWG	26 AWG	Ground Earth	Green Yellow				0.14 mm²	1.5 mm²	1	4	3.5 mm	8 mm	UL94 V-0	Nylon Polyamide (PA)
Phoenix Contact 3211812	600 V	Push In Spring	12 AWG	26 AWG	Feed Through	Blue	800 V	20 A	24 A	0.14 mm²	4 mm²	1	2	5.2 mm
