R3114 Series

Manufacturer: Nisshinbo Micro Devices Inc.

Catalog

IC SUPERVISOR 1 CHANNEL SOT23-5

Part	Type	Supplier Device Package	Mounting Type	Reset Timeout	Reset	Number of Voltages Monitored	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output	Voltage - Threshold
Nisshinbo Micro Devices Inc. R3114N351A-TR-FE	Voltage Detector	SOT-23-5	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	SC-74A SOT-753	Open Drain or Open Collector	3.5 V

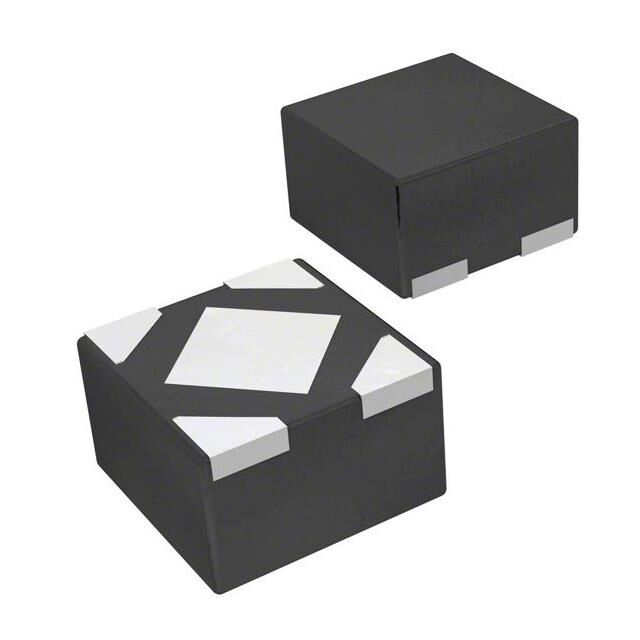

Nisshinbo Micro Devices Inc. R3114K301A-TR	Voltage Detector	DFN(PL)1010-4	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	4-UDFN Exposed Pad	Open Drain or Open Collector	3 V
Nisshinbo Micro Devices Inc. R3114K081C-TR	Voltage Detector	DFN(PL)1010-4	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	4-UDFN Exposed Pad	Push-Pull Totem Pole	800 mV
Nisshinbo Micro Devices Inc. R3114K221A-TR	Voltage Detector	DFN(PL)1010-4	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	4-UDFN Exposed Pad	Open Drain or Open Collector	2.2 V
Nisshinbo Micro Devices Inc. R3114Q461A-TR-FE	Voltage Detector	SC-82AB	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	SC-82A SOT-343	Open Drain or Open Collector	4.6 V
Nisshinbo Micro Devices Inc. R3114Q421A-TR-FE	Voltage Detector	SC-82AB	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	SC-82A SOT-343	Open Drain or Open Collector	4.2 V
Nisshinbo Micro Devices Inc. R3114N291A-TR-FE	Voltage Detector	SOT-23-5	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	SC-74A SOT-753	Open Drain or Open Collector	2.9 V
Nisshinbo Micro Devices Inc. R3114Q261C-TR-FE	Voltage Detector	SC-82AB	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	SC-82A SOT-343	Push-Pull Totem Pole	2.6 V
Nisshinbo Micro Devices Inc. R3114N191A-TR-FE	Voltage Detector	SOT-23-5	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	SC-74A SOT-753	Open Drain or Open Collector	1.9 V
Nisshinbo Micro Devices Inc. R3114K381A-TR	Voltage Detector	DFN(PL)1010-4	Surface Mount	40 µs	Active Low	1	85 °C	-40 C	4-UDFN Exposed Pad	Open Drain or Open Collector	3.8 V
