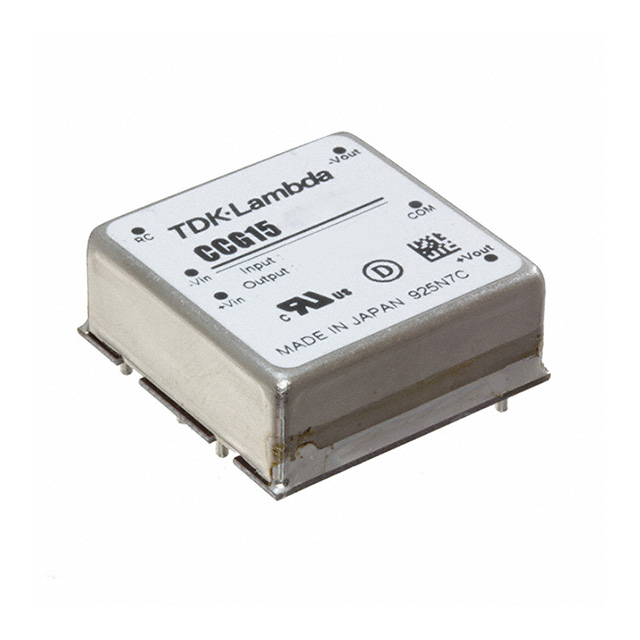

CCG15 Series
Manufacturer: TDK Corporation
Beta
⌘K
DC-DC CONVERTER, 5V, 3A
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Voltage - Input (Min) [Min] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Mounting Type | Type | Voltage - Output 1 | Voltage - Input (Max) [Max] | Features | Voltage - Isolation | Applications | Efficiency | Current - Output (Max) [Max] | Approval Agency | Power (Watts) | Control Features | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 9 V | 1 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 5 V | 36 V | Adjustable Output OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 87 % | 3 A | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | ||||
 TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 18 V | 2 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 15 V | 76 V | OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 90 % | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | 500 mA | -15 V | |||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 9 V | 1 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 3.3 V | 36 V | Adjustable Output OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 85 % | 4 A | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | ||||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 18 V | 1 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 3.3 V | 76 V | Adjustable Output OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 85 % | 4 A | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | ||||
 TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 18 V | 1 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 15 V | 76 V | Adjustable Output OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 88 % | 1 A | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | ||||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 18 V | 2 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 12 V | 76 V | OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 89 % | CE CSA EN IEC UKCA UL | 16 W | Active Low Enable | -12 V | 650 mA | 650 mA | ||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 18 V | 1 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 5 V | 76 V | Adjustable Output OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 87 % | 3 A | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | ||||
 TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 18 V | 1 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 12 V | 76 V | Adjustable Output OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 88 % | 1.3 A | CE CSA EN IEC UKCA UL | 15 W | Active Low Enable | ||||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 9 V | 2 | 85 °C | -40 C | 62368-1 | Through Hole | Isolated Module | 12 V | 36 V | OCP Remote On/Off | 1.5 kV | ITE (Commercial) | 89 % | CE CSA EN IEC UKCA UL | 16 W | Active Low Enable | -12 V | 650 mA | 650 mA |
