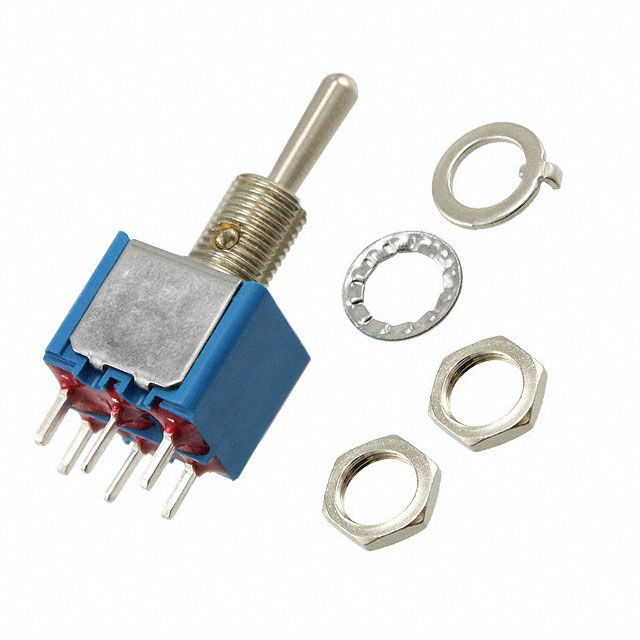

5249A Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Voltage Rating - AC | Mounting Type | Features | Actuator Type | Illumination | Voltage Rating - DC | Bushing Thread | Current Rating (Amps) | Termination Style | Circuit | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | 125 V | Panel Mount | Epoxy Sealed Terminals | Standard Round | Non-Illuminated | 30 V | 1/4-40 | 4 A 6 A | PC Pin | DPDT | On-Off-On | 85 °C | -40 C | 6.5 mm | |
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | 125 V | Panel Mount | Front Panel Sealing | Locking Lever | Non-Illuminated | 30 V | 1/4-40 | 4 A 6 A | PC Pin | DPDT | On-Off-On | 85 °C | -40 C | 6.5 mm | 15.1 mm |
