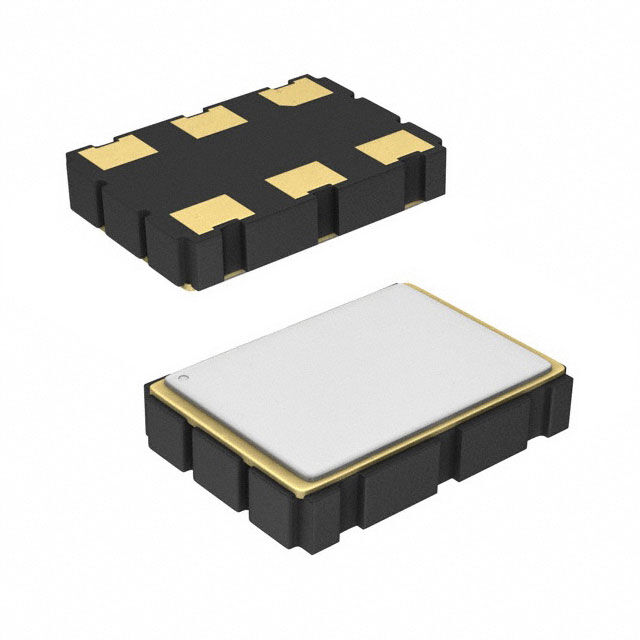

SG5032EAN Series

Manufacturer: EPSON

Catalog

STANDARD CLOCK OSCILLATORS XTAL OSC 2.5~3.3V +/-50PPM -40~85C 250 T/R

Part	Type	Frequency	Base Resonator [custom]	Current - Supply (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Function	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Current - Supply (Disable) (Max) [Max]
EPSON SG5032EAN 156.250000M-KJGA3	XO (Standard)	156.25 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	50 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 150.000000M-KJGA3	XO (Standard)	150 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	50 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 106.250000M-KJGA3	XO (Standard)	106.25 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	50 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 161.132800M-KJGA3	XO (Standard)	161.1328 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	50 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 106.250000M-KEGAB	XO (Standard)	106.25 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	30 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2	20 mA
EPSON SG5032EAN 98.304000M-KEGA3	XO (Standard)	98.304 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	30 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2	20 mA
EPSON SG5032EAN 312.500000M-KEGA3	XO (Standard)	312.5 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	30 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 156.250000M-KEGA3	XO (Standard)	156.25 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	30 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 125.000000M-KCBAB	XO (Standard)	125 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	20 ppm	2.5 V	3.3 V	70 °C	-20 ░C	6-SMD No Lead	LVPECL	5	6-SMD	3.2
EPSON SG5032EAN 156.250000M-KEGA0	XO (Standard)	156.25 MHz	Crystal	65 mA	Surface Mount	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	1.2 mm	0.047 "	30 ppm	2.5 V	3.3 V	85 °C	-40 C	6-SMD No Lead	LVPECL	5	6-SMD	3.2	20 mA
