AD5258 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

NONVOLATILE, I2C®-COMPATIBLE 64-POSITION, DIGITAL POTENTIOMETER

Part	Memory Type	Taper	Tolerance	Resistance - Wiper (Typ)	Features	Operating Temperature (Min)	Operating Temperature (Max)	Interface	Resistance	Number of Taps	Package Length	Package Name	Package Width	Temperature Coefficient (Typ)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Number of Circuits	Mounting Type	Configuration	Supplied Contents	Function	Utilized IC / Part	Type	Contents	Primary Attributes	Embedded	Secondary Attributes
Analog Devices Inc./Maxim Integrated AD5258BRMZ1-R7	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	1 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated AD5258BRMZ50-R7	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	50 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated AD5258BRMZ50	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	50 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated AD5258BRMZ100	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	100 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer

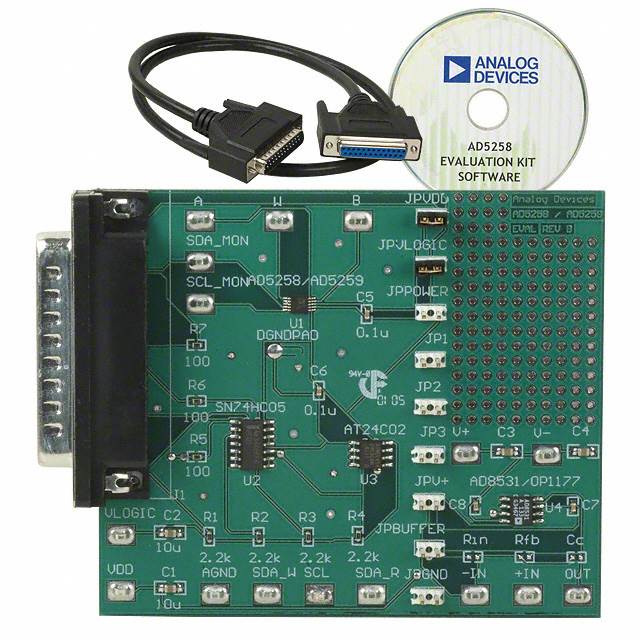

Analog Devices Inc./Maxim Integrated AD5258EVAL																				Board(s)	Digital Potentiometer	AD5258	Data Acquisition	Board
Analog Devices Inc./Maxim Integrated AD5258BRMZ10	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	10 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated AD5258BRMZ100-R7	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	100 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated AD5258BRMZ10-R7	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	10 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated AD5258BRMZ1	Non-Volatile	Linear	30 %	75 Ohm	Selectable Address	-40 °C	85 °C	I2C	1 kOhm	64	0.118 in	10-MSOP 10-TFSOP	3 mm	200 ppm/°C	5.5 V	2.7 V	1	Surface Mount	Potentiometer
Analog Devices Inc./Maxim Integrated EVAL-AD5258DBZ																					Digital Potentiometer	AD5258	Data Acquisition	Board	1 Channel 64 Position	No	I2C Interface(s)
