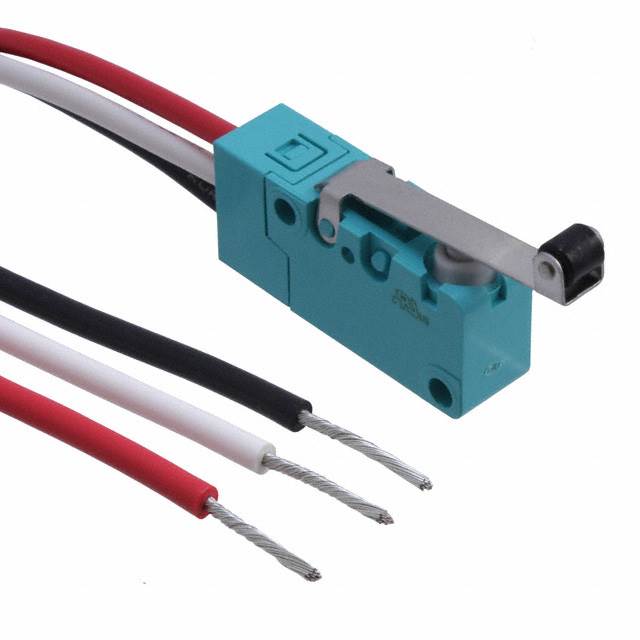

ABV161 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACTION SPDT 5A 250V

Part	Electrical Life	Actuator Type	Operating Position	Operating Position	Mounting Type	Overtravel [custom]	Overtravel [custom]	Operating Force	Mechanical Life	Termination Style	Pretravel	Pretravel	Current Rating (Amps)	Ingress Protection	Switch Function	Differential Travel	Differential Travel	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Overtravel	Overtravel	Release Force	Operating Position [x]	Operating Position [x]
Panasonic Electronic Components ABV1615503	100000 Cycles	Lever Roller	20.7 mm	0.815 in	Chassis Mount	0.03 "	0.76 mm	220 gf	5000000 Cycles	Wire Leads	0.063 in	1.6 mm	5 A	IP67 - Dust Tight Waterproof	On-Mom	0.5 mm	0.02 in	SPDT	85 °C	-40 C	250 V
Panasonic Electronic Components ABV161261	100000 Cycles	Lever Straight	15.3 mm	0.602 in	Chassis Mount			180 gf	5000000 Cycles	Wire Leads	0.125 in	3.2 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	1.2 mm	0.047 in	SPDT	85 °C	-40 C	250 V	1.2 mm	0.047 "	20 gf
Panasonic Electronic Components ABV1610613	100000 Cycles	Round (Pin Plunger)	14.7 mm	0.579 in	Chassis Mount	0.03 "	0.76 mm	300 gf	5000000 Cycles	Wire Leads	0.063 in	1.6 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	0.4 mm	0.016 in	SPDT	85 °C	-40 C	250 V			60 gf
Panasonic Electronic Components ABV1610403	100000 Cycles	Round (Pin Plunger)	14.7 mm	0.579 in	Chassis Mount	0.03 "	0.76 mm	100 gf	5000000 Cycles	Wire Leads	0.063 in	1.6 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	0.4 mm	0.016 in	SPDT	85 °C	-40 C	250 V			25 gf

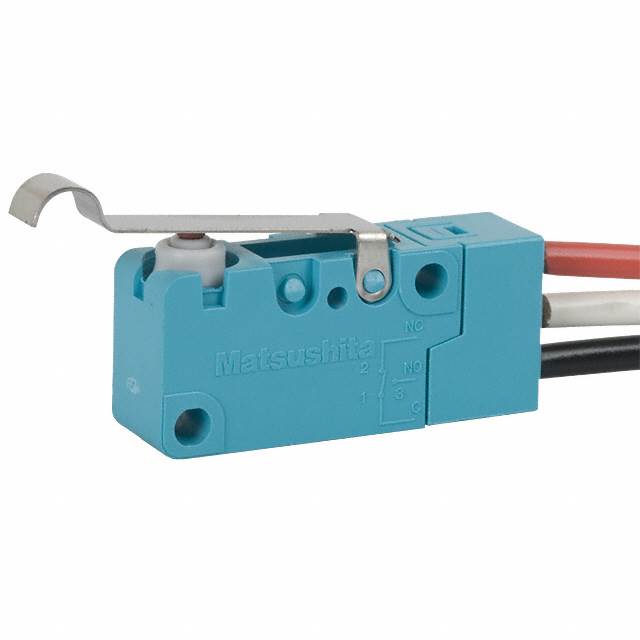

Panasonic Electronic Components ABV1614619	100000 Cycles	Lever Simulated Roller			Chassis Mount			180 gf	5000000 Cycles	Wire Leads	0.125 in	3.2 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	1.2 mm	0.047 in	SPDT	85 °C	-40 C	250 V	1.2 mm	0.047 "	20 gf	18.5 mm	0.73 in
Panasonic Electronic Components ABV1616613	100000 Cycles	Lever Roller	20.7 mm	0.815 in	Chassis Mount			180 gf	5000000 Cycles	Wire Leads	0.125 in	3.2 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	1.2 mm	0.047 in	SPDT	85 °C	-40 C	250 V	1.2 mm	0.047 "	20 gf

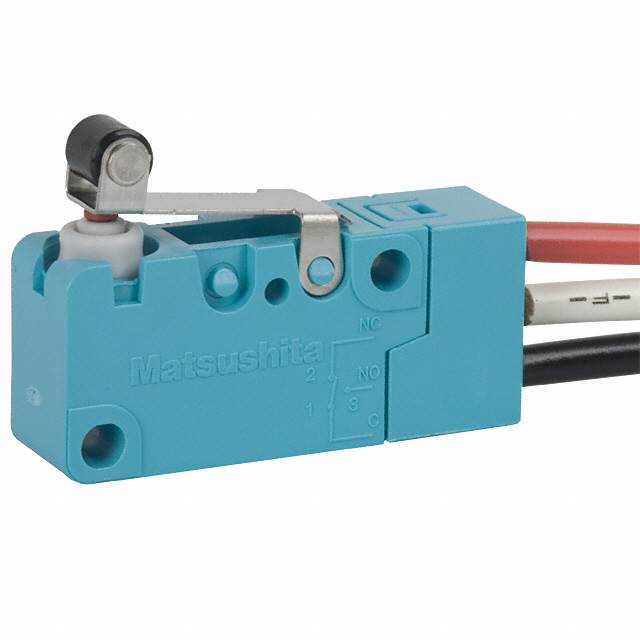

Panasonic Electronic Components ABV1615619	100000 Cycles	Lever Roller	20.7 mm	0.815 in	Chassis Mount	0.03 "	0.76 mm	320 gf	5000000 Cycles	Wire Leads	0.063 in	1.6 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	0.5 mm	0.02 in	SPDT	85 °C	-40 C	250 V			60 gf

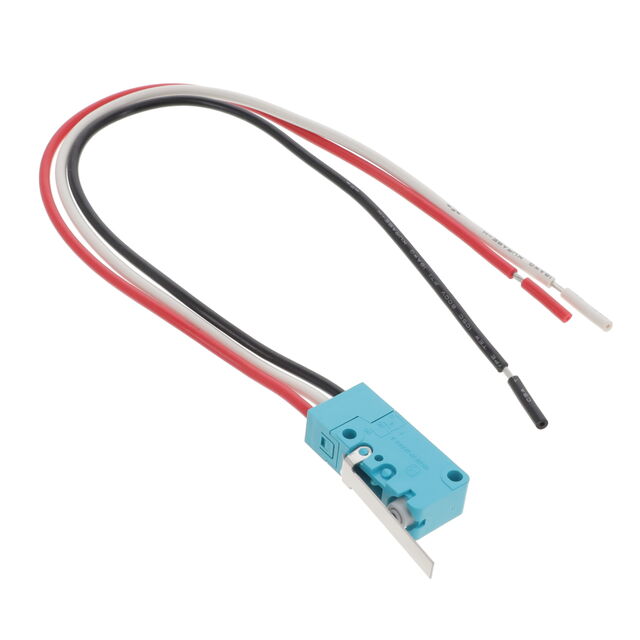

Panasonic Electronic Components ABV1612503	100000 Cycles	Lever Straight	15.3 mm	0.602 in	Chassis Mount			120 gf	5000000 Cycles	Wire Leads	0.125 in	3.2 mm	5 A	IP67 - Dust Tight Waterproof	On-Mom	1.2 mm	0.047 in	SPDT	85 °C	-40 C	250 V	1.2 mm	0.047 "	13 gf
Panasonic Electronic Components ABV1612513	100000 Cycles	Lever Straight	15.3 mm	0.602 in	Chassis Mount			120 gf	5000000 Cycles	Wire Leads	0.125 in	3.2 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	1.2 mm	0.047 in	SPDT	85 °C	-40 C	250 V	1.2 mm	0.047 "	13 gf
Panasonic Electronic Components ABV161651	100000 Cycles	Lever Roller	20.7 mm	0.815 in	Chassis Mount			120 gf	5000000 Cycles	Wire Leads	0.125 in	3.2 mm	3 A	IP67 - Dust Tight Waterproof	On-Mom	1.2 mm	0.047 in	SPDT	85 °C	-40 C	250 V	1.2 mm	0.047 "	13 gf
