794449 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

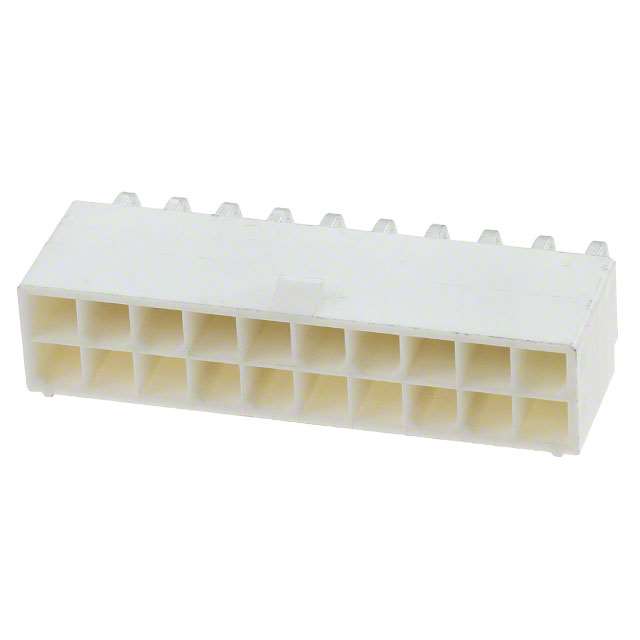

CONN HEADER R/A 20POS 4.2MM
| Part | Voltage Rating | Number of Positions Loaded | Mounting Type | Contact Type | Insulation Height | Insulation Height | Contact Material | Number of Positions | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Material Flammability Rating | Insulation Color | Termination | Shrouding | Pitch - Mating | Pitch - Mating | Connector Type | Style | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 600 VAC | All | Right Angle Through Hole | Male Pin | 10 mm | 0.394 " | Copper Alloy | 20 | Tin | 0.138 in | 3.5 mm | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Board Lock | -55 C | 105 ░C | Locking Ramp | 0.165 in | 4.2 mm | Square | UL94 V-2 | Natural | Solder | Shrouded - 4 Wall | 0.165 in | 4.2 mm | Header | Board to Board Cable | 2 |
