1376274 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

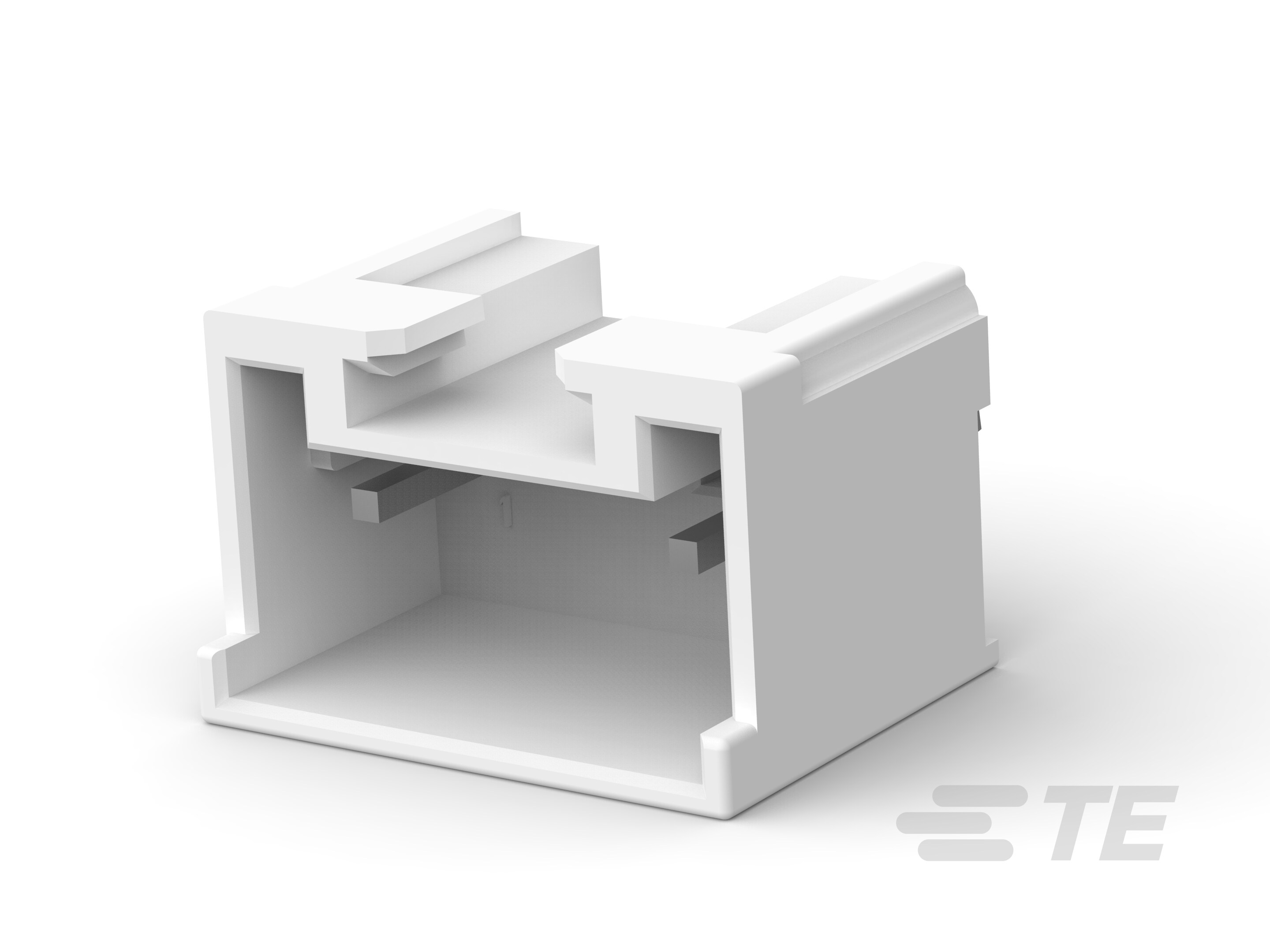

CONN HEADER VERT 4POS 2.5MM
| Part | Applications | Mated Stacking Heights | Connector Type | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Contact Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Positions Loaded | Mounting Type | Contact Shape | Material Flammability Rating | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Fastening Type | Style | Shrouding | Insulation Color | Contact Material | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Voltage Rating | Pitch - Mating | Pitch - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 13.7 mm | Header | 3 A | 4.7 mm | 0.185 in | Male Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | -30 ░C | 105 ░C | 9.8 mm | 0.386 in | 2 | Through Hole | Square | UL94 V-2 | Tin | 0.41 in | 10.41 mm | Latch Holder | Board to Cable/Wire | Shrouded - 4 Wall | Red | Copper Alloy | Kinked Pin Solder | 0.126 " | 3.2 mm | 1 | 50 V | 2.5 mm | 0.098 in | 4 |
