203565 Series
Manufacturer: Molex
Beta
⌘K

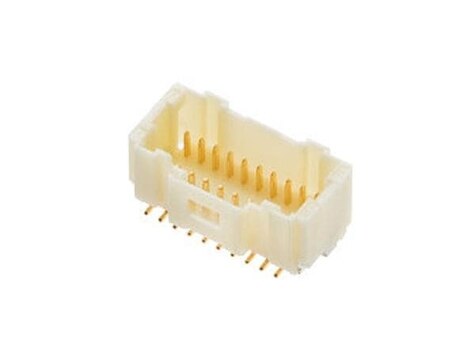

1.00MM PITCH, PICO-CLASP PCB HEADER, DUAL ROW, VERTICAL, SURFACE MOUNT, 0.76ΜM GOLD PLATED, INNER POSITIVE LOCK, 30 CIRCUITS
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Contact Finish - Mating | Mounting Type | Termination | Number of Rows | Contact Finish - Post | Features | Contact Shape | Number of Positions | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Number of Positions Loaded | Fastening Type | Insulation Material | Contact Material | Style | Insulation Height | Insulation Height [z] | Shrouding | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 30 Áin | 0.76 Ám | Automotive General Purpose Industrial Medical | -40 °C | 105 ░C | 0.105 in | 2.66 mm | 50 V | Gold | Surface Mount | Solder | 2 | Gold | Solder Retention | Rectangular | 30 | Varies by Wire Gauge | 0.039 in | 1 mm | Natural | 4.02 µin | 0.102 µm | Male Pin | All | Friction Lock | Nylon Polyamide (PA) | Phosphor Bronze | Board to Cable/Wire | 5.4 mm | 0.213 in | Shrouded - 4 Wall | Header | UL94 V-0 |
 Molex | |||||||||||||||||||||||||||||||||
Molex | 30 Áin | 0.76 Ám | Automotive General Purpose Industrial Medical | -40 °C | 105 ░C | 0.105 in | 2.66 mm | 50 V | Gold | Surface Mount | Solder | 2 | Gold | Pick and Place Solder Retention | Rectangular | 20 | Varies by Wire Gauge | 0.039 in | 1 mm | Natural | 4.02 µin | 0.102 µm | Male Pin | All | Friction Lock | Nylon Polyamide (PA) | Phosphor Bronze | Board to Cable/Wire | 5.4 mm | 0.213 in | Shrouded - 4 Wall | Header | UL94 V-0 |
