LC4128 Series

Manufacturer: Lattice Semiconductor Corporation

Catalog

IC CPLD 128MC 5NS 100TQFP

Part	Delay Time tpd(1) Max [Max]	Programmable Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Logic Elements/Blocks	Number of Macrocells	Supplier Device Package	Mounting Type	Number of I/O
Lattice Semiconductor Corporation LC4128C-5T100C	5 ns	In System Programmable	100-LQFP	90 °C	0 °C	1.65 V	1.95 V	8	128	100-TQFP (14x14)	Surface Mount	64
Lattice Semiconductor Corporation LC4128B-10TN100I	10 ns	In System Programmable	100-LQFP	105 C	-40 C	2.3 V	2.7 V	8	128	100-TQFP (14x14)	Surface Mount	64

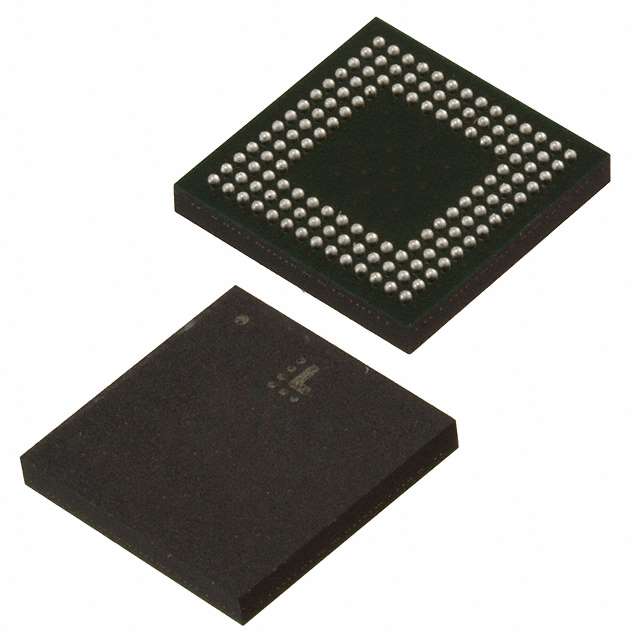

Lattice Semiconductor Corporation LC4128ZC-75MN132C	7.5 ns	In System Programmable	132-LFBGA CSPBGA	90 °C	0 °C	1.7 V	1.9 V	8	128	132-CSBGA (8x8)	Surface Mount	96
Lattice Semiconductor Corporation LC4128ZE-5MN144C	5.8 ns	In System Programmable	144-TFBGA CSPBGA	90 °C	0 °C	1.7 V	1.9 V	8	128	144-CSBGA (7x7)	Surface Mount	96
Lattice Semiconductor Corporation LC4128V-5TN128I	5 ns	In System Programmable	128-LQFP	105 C	-40 C	3 V	3.6 V	8	128	128-TQFP (14x14)	Surface Mount	92
Lattice Semiconductor Corporation LC4128V-75T144E	7.5 ns	In System Programmable	144-LQFP	130 °C	-40 °C	3 V	3.6 V	8	128	144-TQFP (20x20)	Surface Mount	96
Lattice Semiconductor Corporation LC4128V-27T128C	2.7 ns	In System Programmable	128-LQFP	90 °C	0 °C	3 V	3.6 V	8	128	128-TQFP (14x14)	Surface Mount	92
Lattice Semiconductor Corporation LC4128V-75T100E	7.5 ns	In System Programmable	100-LQFP	130 °C	-40 °C	3 V	3.6 V	8	128	100-TQFP (14x14)	Surface Mount	64
Lattice Semiconductor Corporation LC4128V-75TN144I	7.5 ns	In System Programmable	144-LQFP	105 C	-40 C	3 V	3.6 V	8	128	144-TQFP (20x20)	Surface Mount	96
Lattice Semiconductor Corporation LC4128V-75TN100E	7.5 ns	In System Programmable	100-LQFP	130 °C	-40 °C	3 V	3.6 V	8	128	100-TQFP (14x14)	Surface Mount	64
