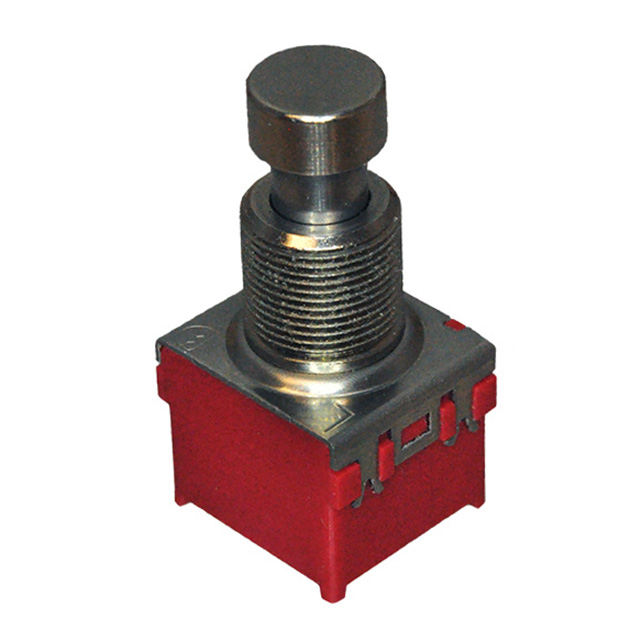

FS5700 Series
Manufacturer: E-Switch
Beta
⌘K
FOOT SWITCHES PUSHBUTTON, 1A 9VDC, DPDT ON-ON, PANEL MOUNT, REAR PC PIN
| Part | Color - Actuator/Cap | Mounting Type | Circuit | Actuator Type | Type | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Features | Panel Cutout Dimensions [diameter] | Switch Function | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Silver | Panel Mount Rear | DPDT | Button Round | Standard | 1 A | PC Pin | 9 V | 70 °C | -10 °C | No Marking | Epoxy Sealed Terminals | 12.2 mm Dia | On-On | |
 E-Switch | Silver | Panel Mount Rear | SPDT | Button Round | Standard | 1 A | PC Pin | 9 V | 70 °C | -10 °C | No Marking | Epoxy Sealed Terminals | 12.2 mm Dia | On-On | 30000 Cycles |
 E-Switch | Silver | Panel Mount Rear | SPDT | Button Round | Standard | 1 A | Solder Lug | 9 V | 70 °C | -10 °C | No Marking | Epoxy Sealed Terminals | 12.2 mm Dia | On-Mom | 30000 Cycles |
