FF450R12 Series

Manufacturer: INFINEON

Catalog

MOD IGBT MED PWR ECONOD-4

Part	IGBT Type	Configuration	Current - Collector (Ic) (Max) [Max]	Input	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]

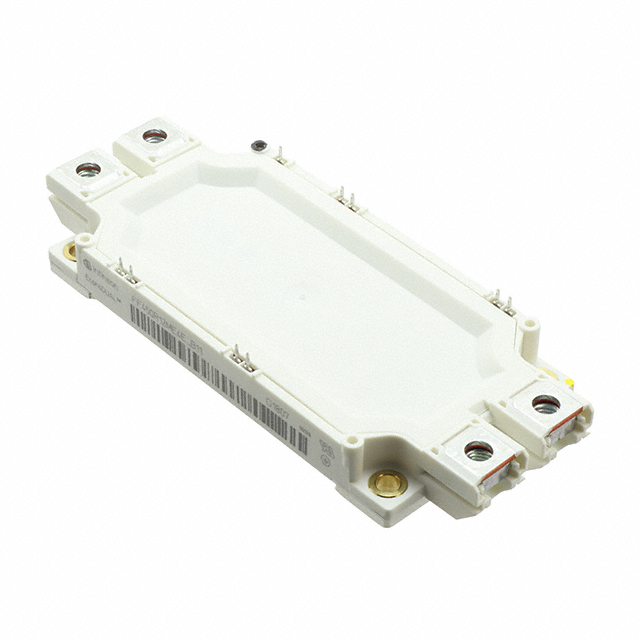

INFINEON FF450R12ME4EB11BPSA1	Trench Field Stop	Half Bridge Inverter	450 A	Standard	Module	1200 V	-40 °C	150 °C	AG-ECONOD-6	Chassis Mount	2.1 V	28 nF	3 mA

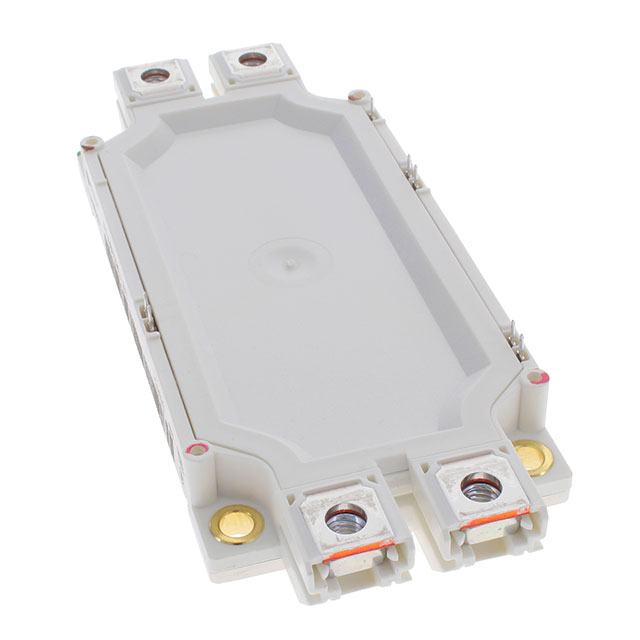

INFINEON FF450R12ME4B11BPSA1	Trench Field Stop	2 Independent	675 A	Standard	Module	1200 V	-40 C	150 °C	Module	Chassis Mount	2.1 V	28 nF	3 mA	2250 W
INFINEON FF450R12ME3BOSA1	Trench Field Stop	Half Bridge	600 A	Standard	Module	1200 V	-40 C	125 °C	Module	Chassis Mount	2.15 V	32 nF	5 mA	2100 W
INFINEON FF450R12ME4PB11BOSA1	Trench Field Stop	2 Independent	450 A	Standard	Module	1200 V	-40 C	150 °C	Module	Chassis Mount	2.1 V	28 nF	3 mA
INFINEON FF450R12IE4BOSA2	Trench Field Stop	2 Independent	450 A	Standard	Module	1200 V	-40 C	150 °C	Module	Chassis Mount	2.05 V	27 nF	5 mA	2550 W
INFINEON FF450R12KT4HOSA1	Trench Field Stop	Half Bridge	450 A	Standard	Module	1200 V	-40 °C	150 °C	Module	Chassis Mount	2.15 V	28 nF	5 mA	2400 W
INFINEON FF450R12KE4EHOSA1	Trench Field Stop	2 Independent	520 A	Standard	Module	1200 V	-40 C	150 °C	Module	Chassis Mount	2.15 V	28 nF	5 mA	2400 W
