503552 Series

SlimStack Board-to-Board Plug, 0.40mm Pitch, HRF (High Retention Force) Series, 0.70mm Mated Height, 2.60mm Mated Width, 6 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Plug, 0.40mm Pitch, HRF (High Retention Force) Series, 0.70mm Mated Height, 2.60mm Mated Width, 6 Circuits

Part	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Rows	Number of Positions	Mounting Type	Contact Finish	Connector Type	Number of Positions

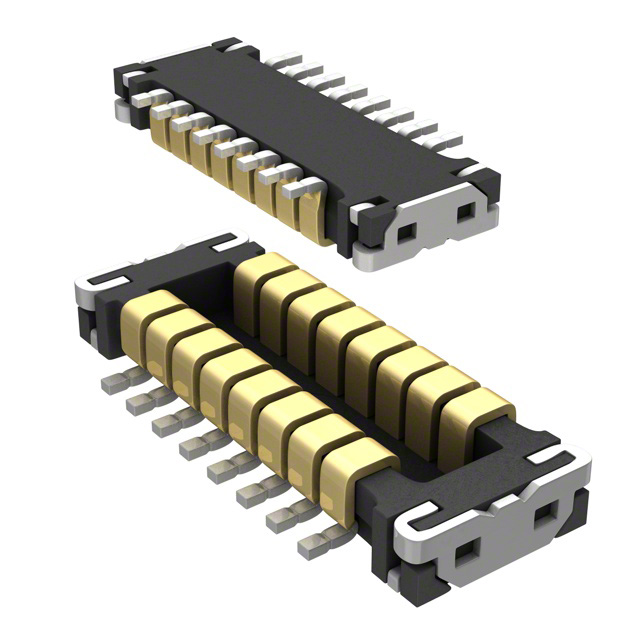

Molex 5035521620	0.016 in	0.4 mm	Solder Retention	0.57 mm	0.022 in	0.7 mm	2	16	Surface Mount	Gold	Outer Shroud Contacts Plug

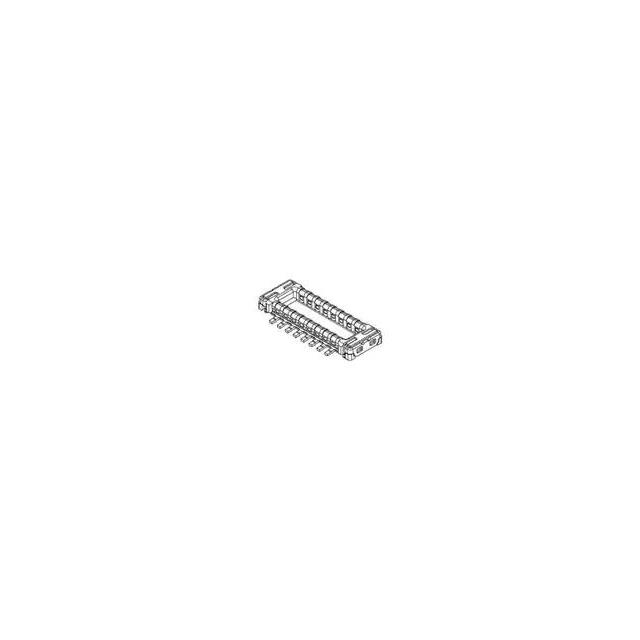

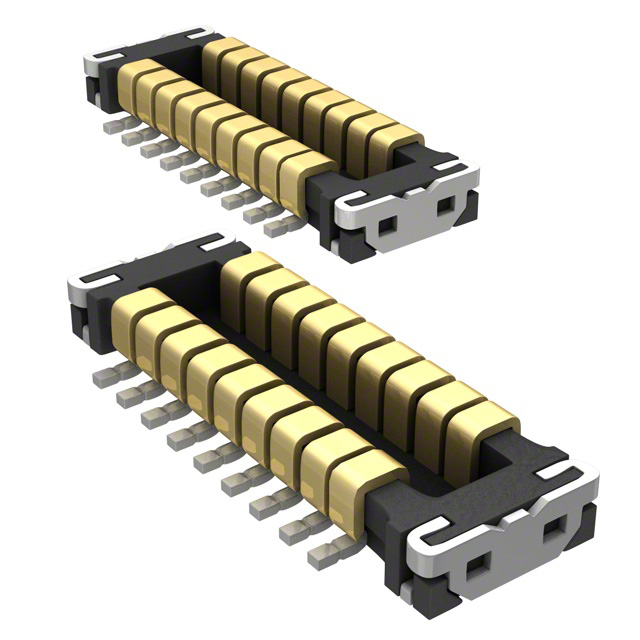

Molex 5035521820	0.016 in	0.4 mm	Solder Retention	0.57 mm	0.022 in	0.7 mm	2		Surface Mount	Gold	Outer Shroud Contacts Plug	18
Molex 5035521680	0.016 in	0.4 mm	Solder Retention	0.57 mm	0.022 in	0.7 mm	2	16	Surface Mount	Gold	Outer Shroud Contacts Plug
Molex 5035521622	0.016 in	0.4 mm	Pick and Place Solder Retention	0.59 mm	0.023 in	0.7 mm	2	16	Surface Mount	Gold	Outer Shroud Contacts Plug

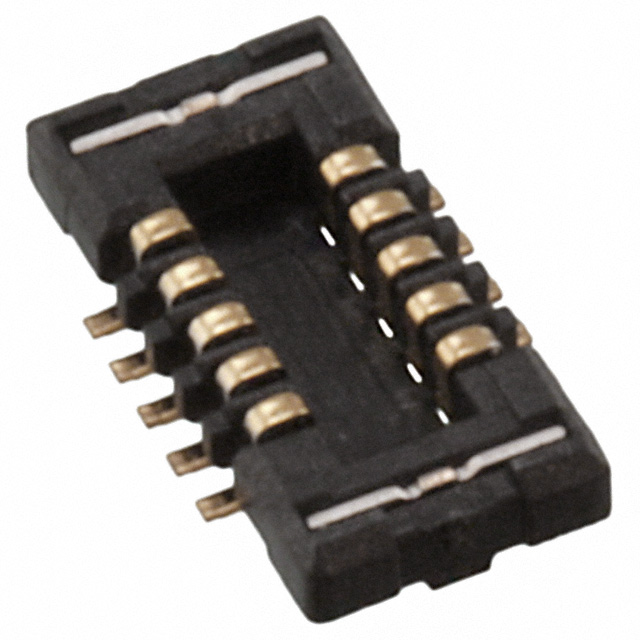

Molex 5035521020	0.016 in	0.4 mm	Solder Retention	0.57 mm	0.022 in	0.7 mm	2		Surface Mount	Gold	Outer Shroud Contacts Plug	10

SlimStack Board-to-Board Plug, 0.40mm Pitch, HRF (High Retention Force) Series, 0.70mm Mated Height, 2.60mm Mated Width, 6 Circuits
