1377172 Series

Catalog

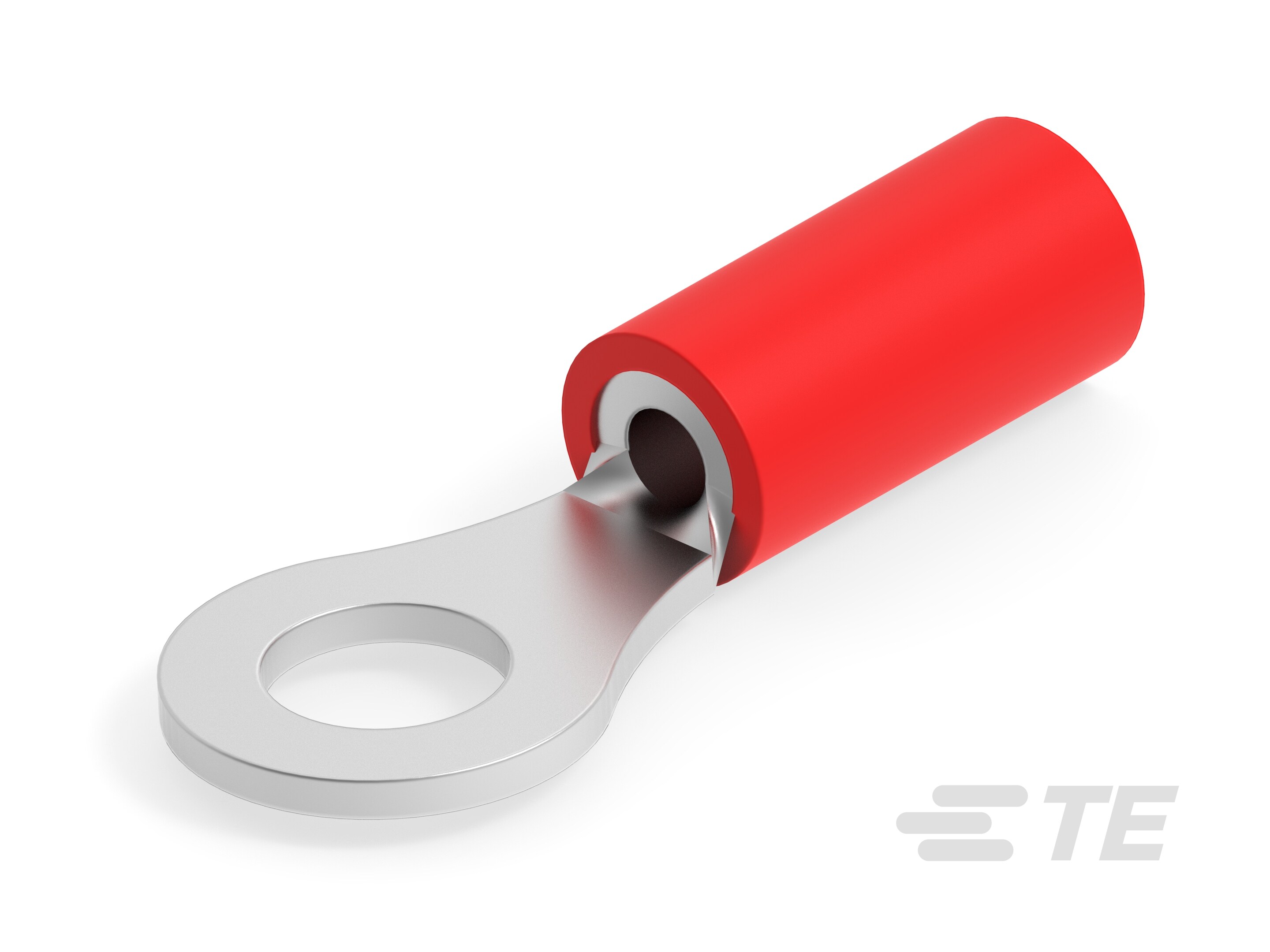

CONN RING CIRC 16-22AWG #8 CRIMP

Part	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Material - Insulation	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Thickness	Thickness	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Contact Finish	Mounting Type	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Color	Length - Overall	Length - Overall
TE Connectivity AMP Connectors 9-1377172-5	2.67 mm	0.14 in	3.56 mm	0.105 in	Poly-Vinyl Chloride (PVC)	Circular	16 AWG	22 AWG	0.79 mm	0.031 in	8 Stud	20.55 mm	0.809 "	Copper	Crimp	Tin	Free Hanging (In-Line)	Serrated Termination	7.14 mm	0.281 in	Insulated	Red
TE Connectivity AMP Connectors 9-1377172-6	2.67 mm	0.14 in	3.56 mm	0.105 in	Poly-Vinyl Chloride (PVC)	Circular	16 AWG	22 AWG	0.79 mm	0.031 in	8 Stud	21.74 mm	0.856 in	Copper	Crimp	Tin	Free Hanging (In-Line)	Serrated Termination	7.92 mm	0.312 in	Insulated	Red
TE Connectivity AMP Connectors 9-1377172-9	2.67 mm	0.14 in	3.56 mm	0.105 in	Poly-Vinyl Chloride (PVC)	Circular	16 AWG	22 AWG	0.79 mm	0.031 in	0.25 Stud			Copper	Crimp	Tin	Free Hanging (In-Line)	Serrated Termination	11.91 mm	0.469 "	Insulated	Red	1.09 in	27.69 mm
TE Connectivity AMP Connectors 1377172-9						Circular	14 AWG	16 AWG	0.79 mm	0.031 in	0.25 Stud	21.72 mm	0.855 in	Copper	Crimp	Tin	Free Hanging (In-Line)	Brazed Seam Serrated Termination	11.91 mm	0.469 "	Non-Insulated
